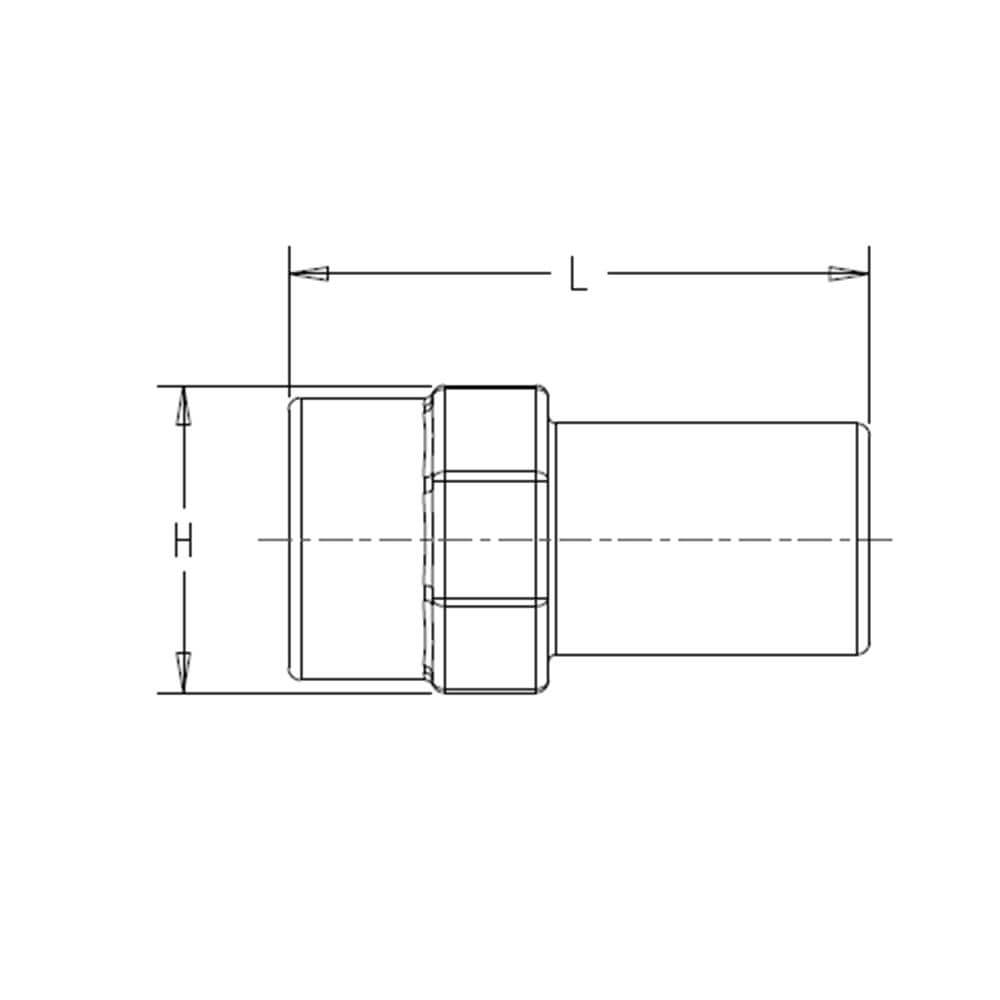

Technical Drawing
Features

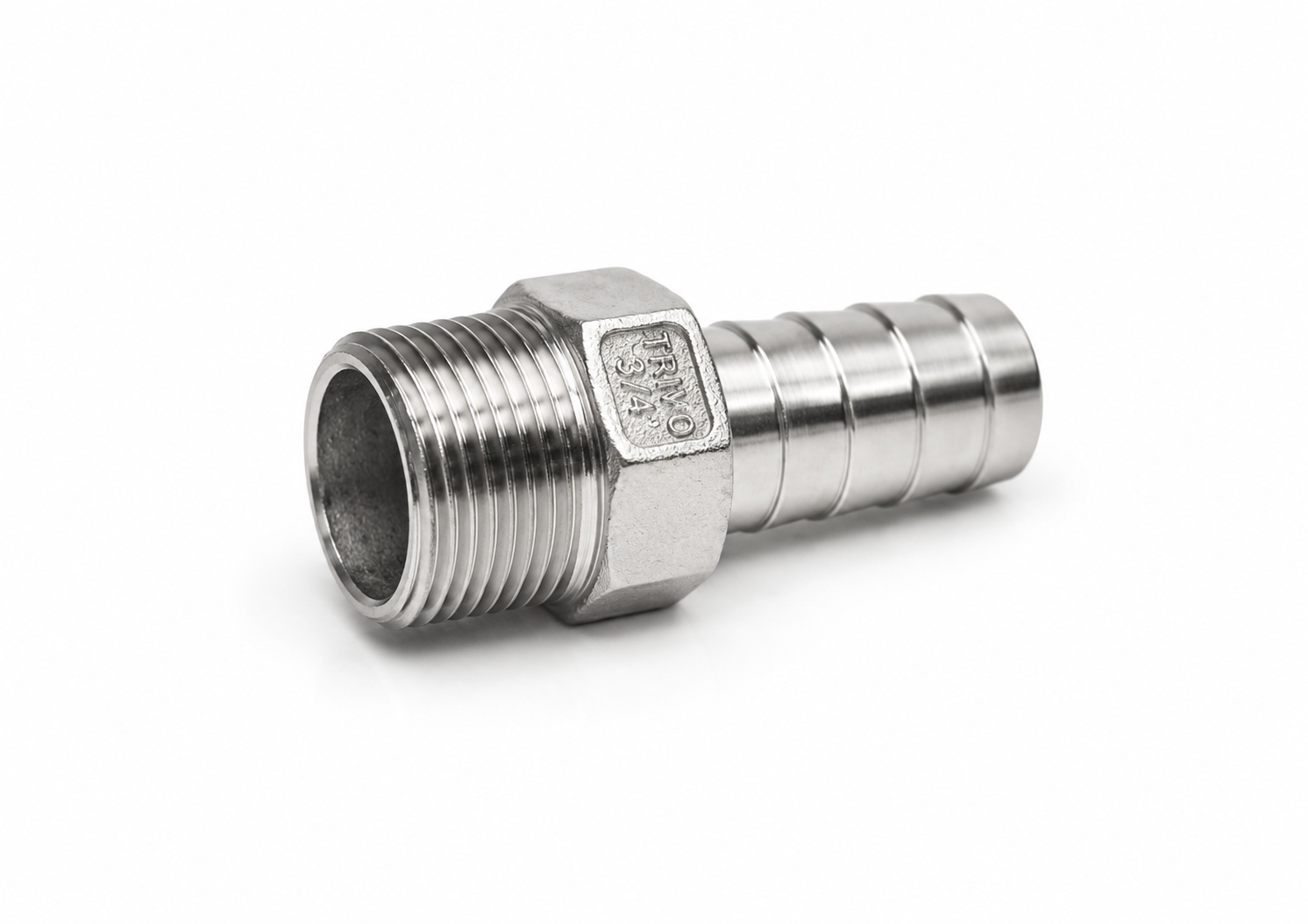

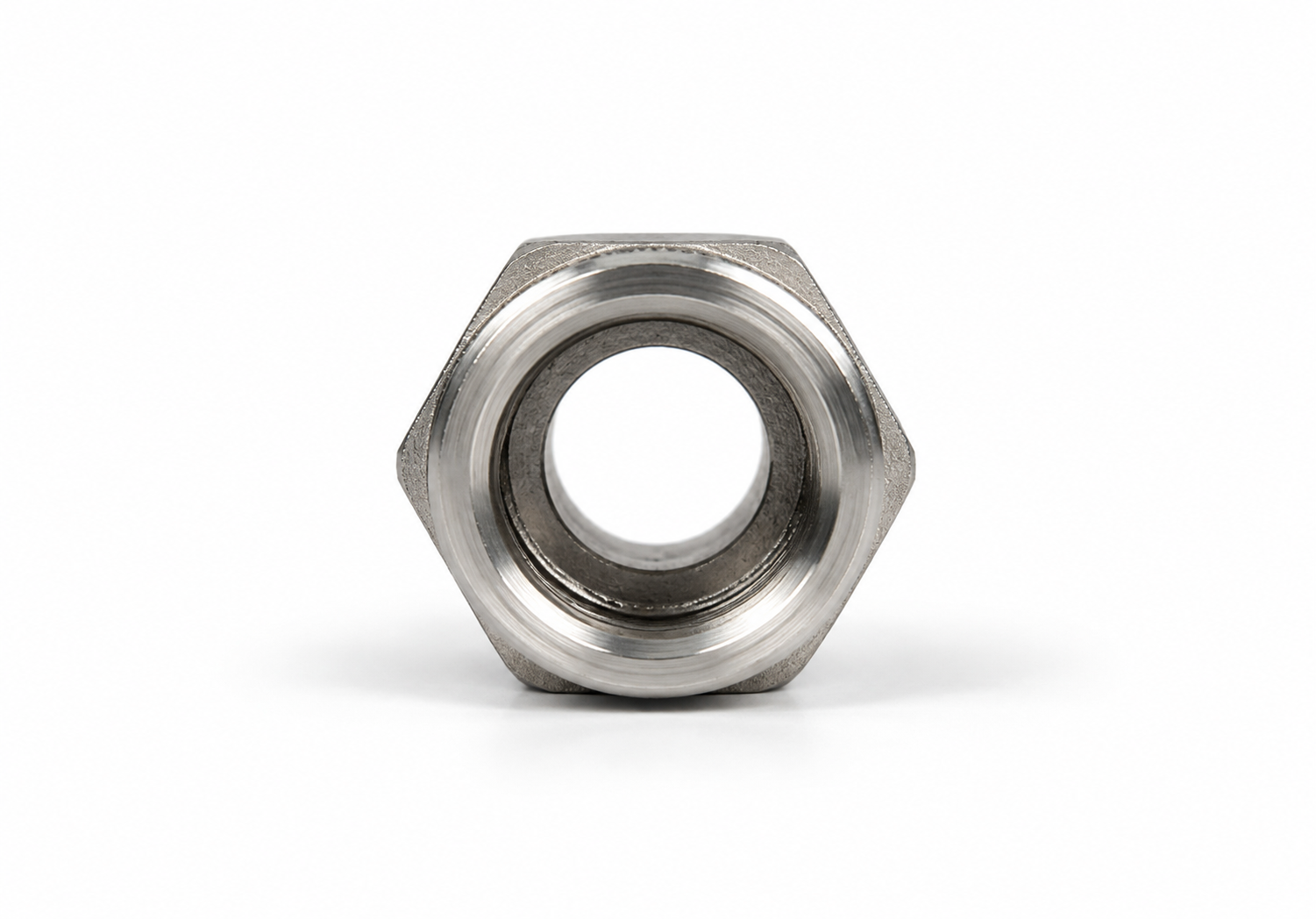

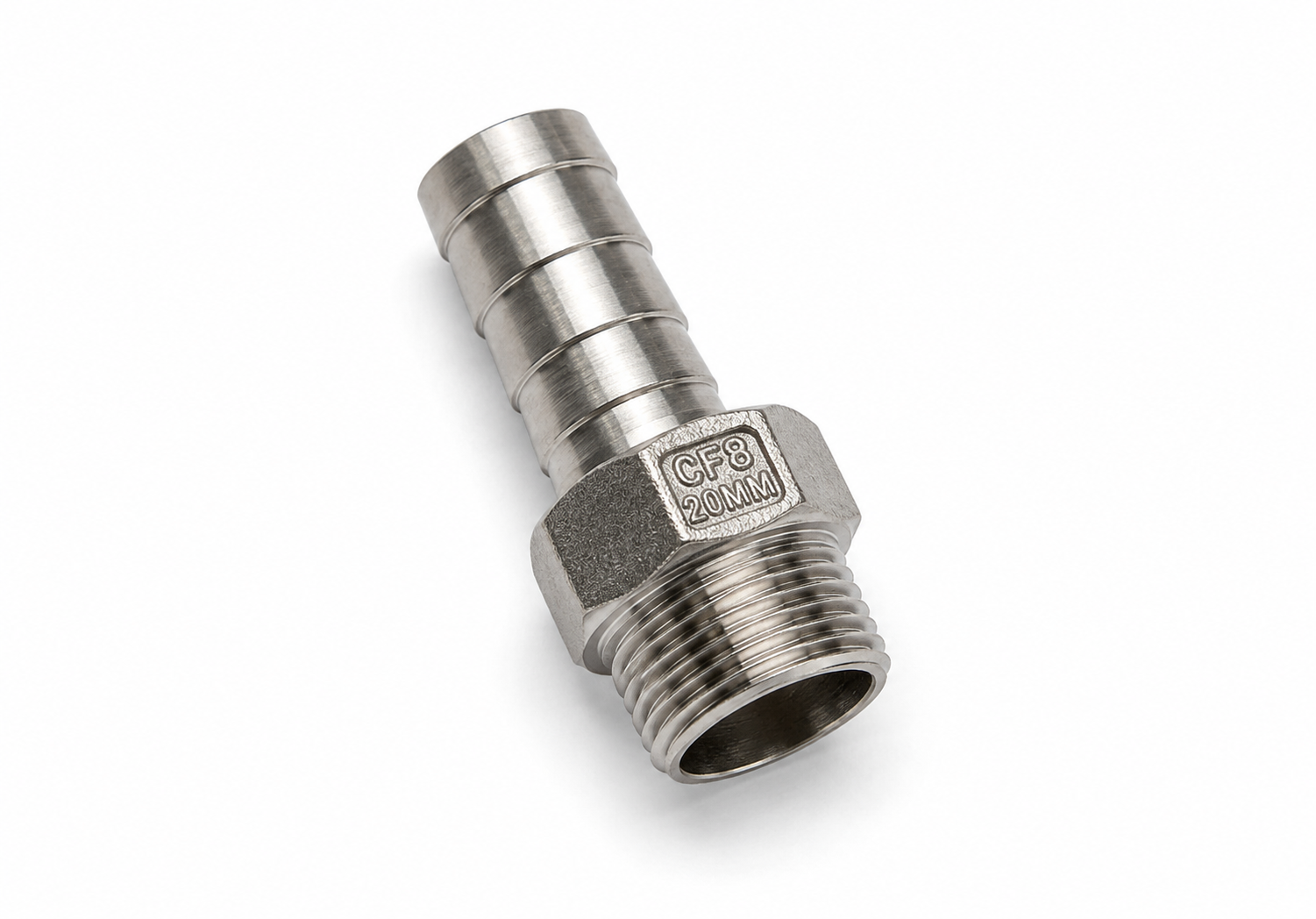

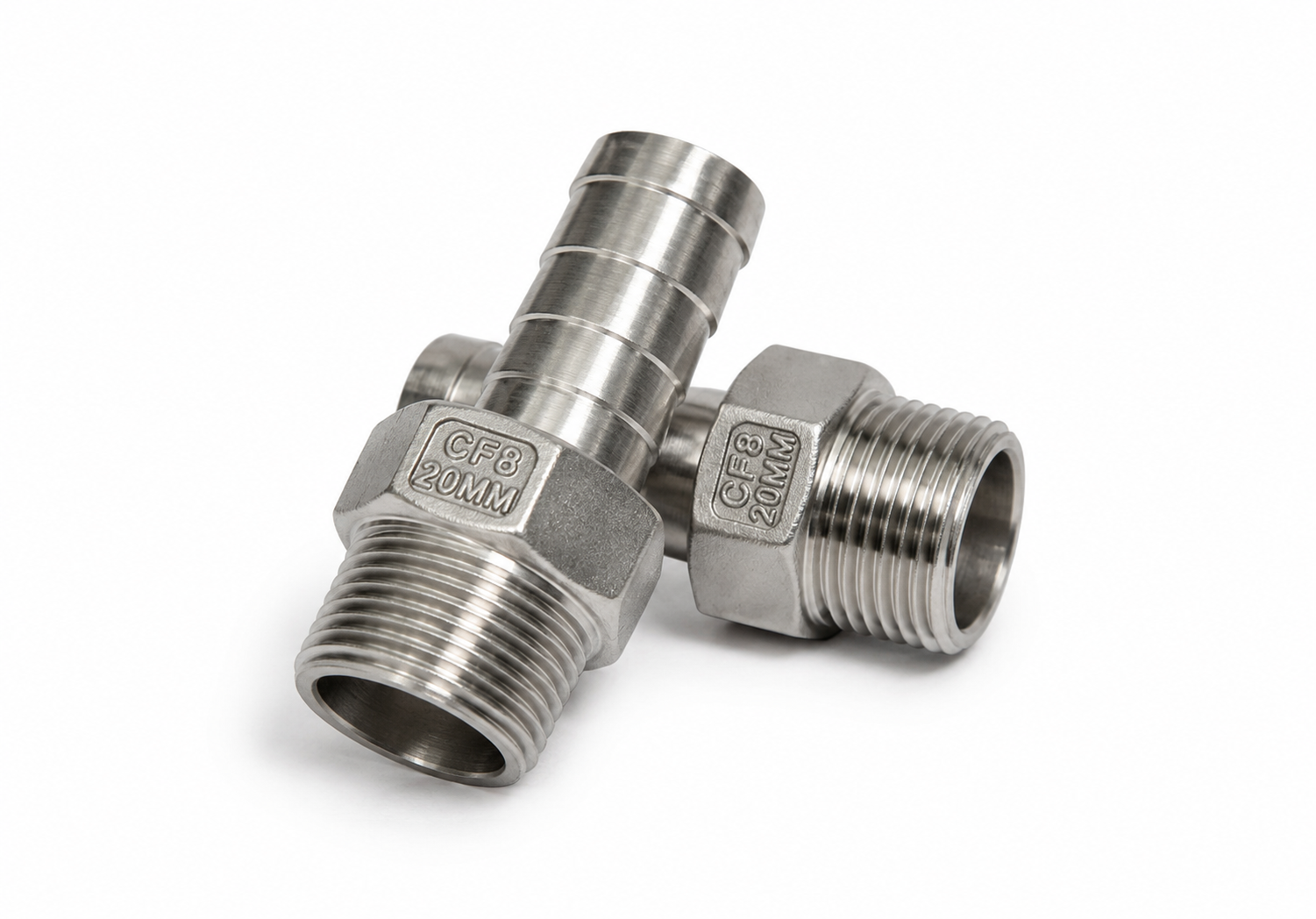

- Investment-casted stainless steel body
- Serrated hose tail for positive grip under pressure
- Available in SS 304 (CF8) / SS 316 (CF8M) grades
- Male BSP thread × Hose barb connection
- Suitable for flexible hose to rigid pipe transitions
- Pressure Rating: PN16
- Corrosion-resistant polished finish
- Multiple hose bore sizes available
Suitability
Water Transfer & IrrigationHose Pipe ConnectionsTanker Loading & UnloadingIndustrial Wash SystemsCooling Water CircuitsGarden & Agricultural Applications
Specifications
| Size (Inch) | Size (mm) | Hose ID (mm) |
|---|---|---|
| 1/4" | 6 | 8 |
| 3/8" | 10 | 12 |
| 1/2" | 15 | 15 |
| 3/4" | 20 | 20 |
| 1" | 25 | 25 |
| 1-1/4" | 32 | 32 |
| 1-1/2" | 40 | 38 |
| 2" | 50 | 50 |
Custom Requirements
Need a custom specification?
We engineer custom fittings, valves, and adapters to your exact specifications. Send us your requirements and receive a technical quote within 48 hours.
