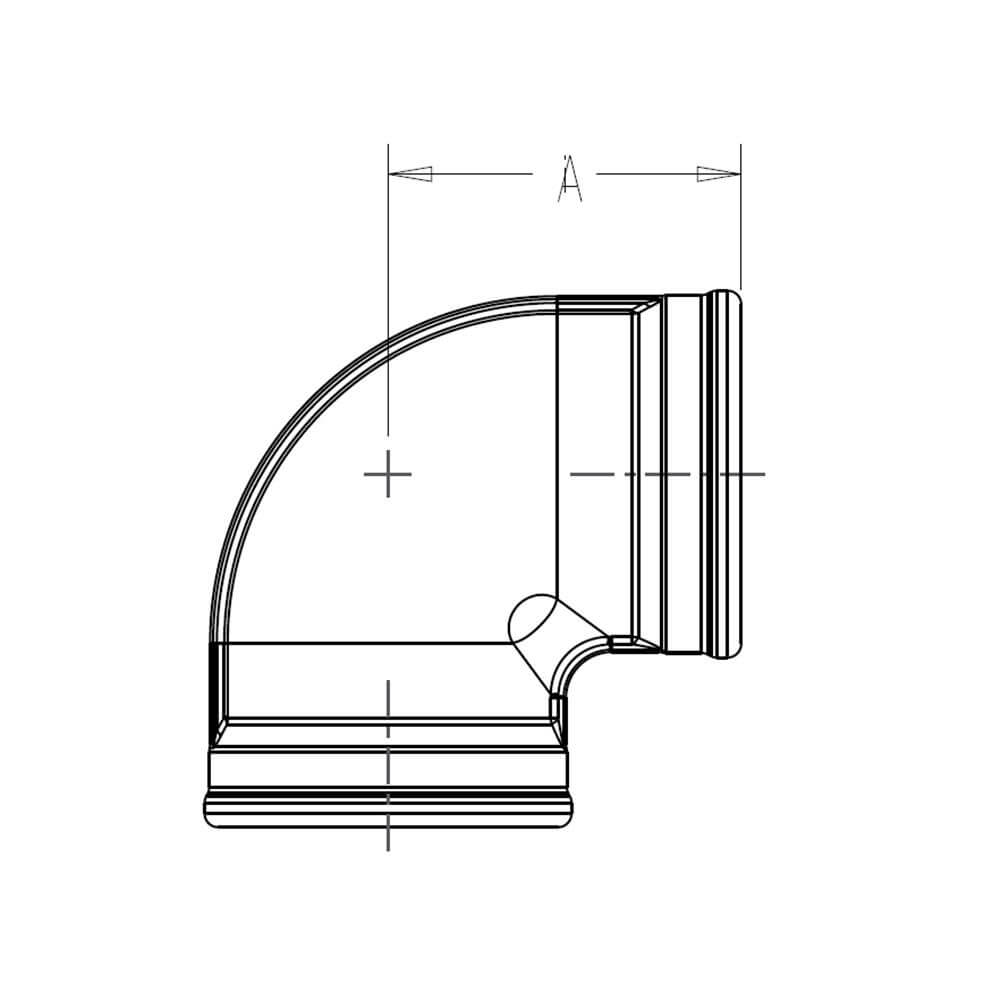

Technical Drawing

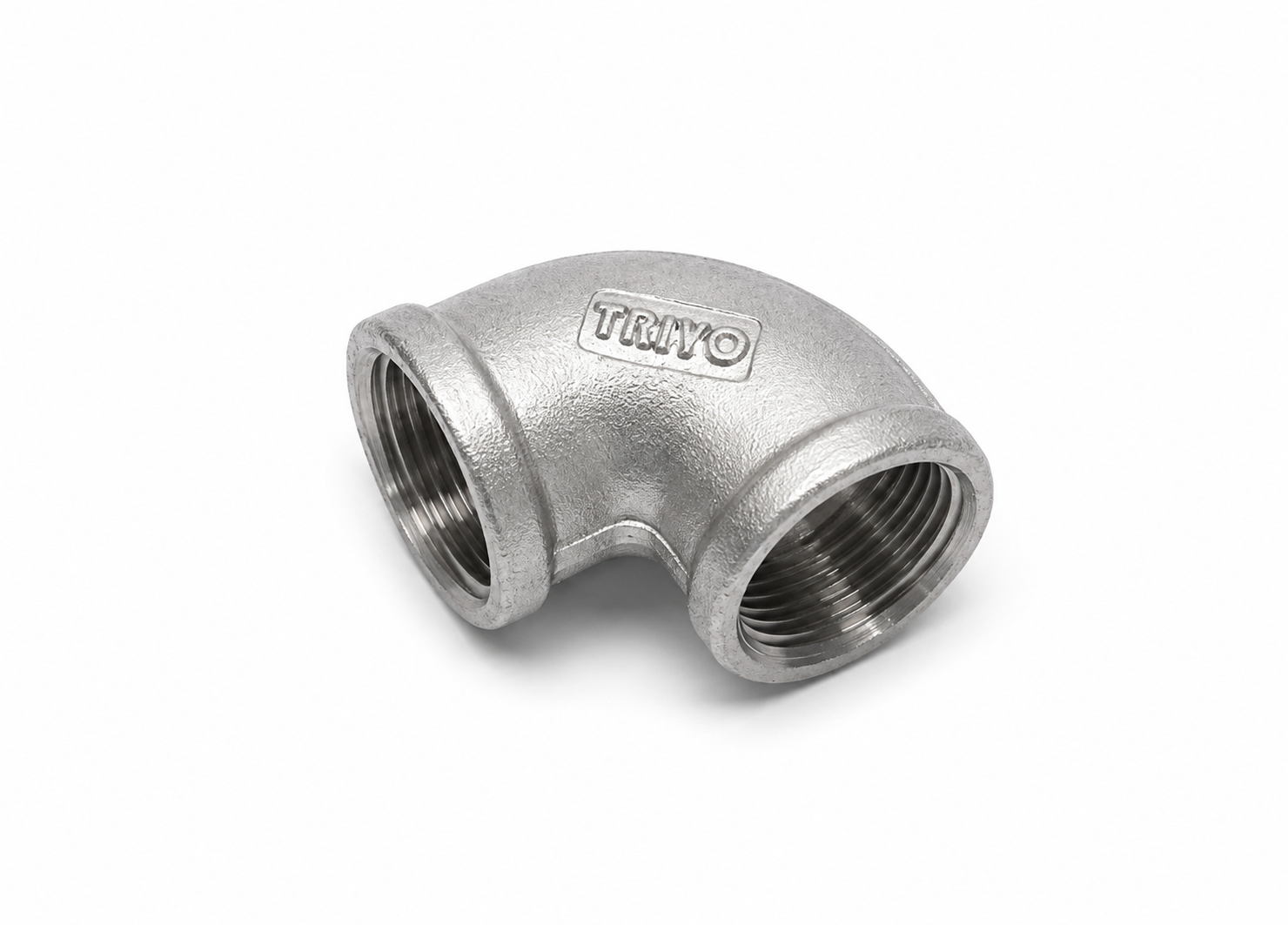

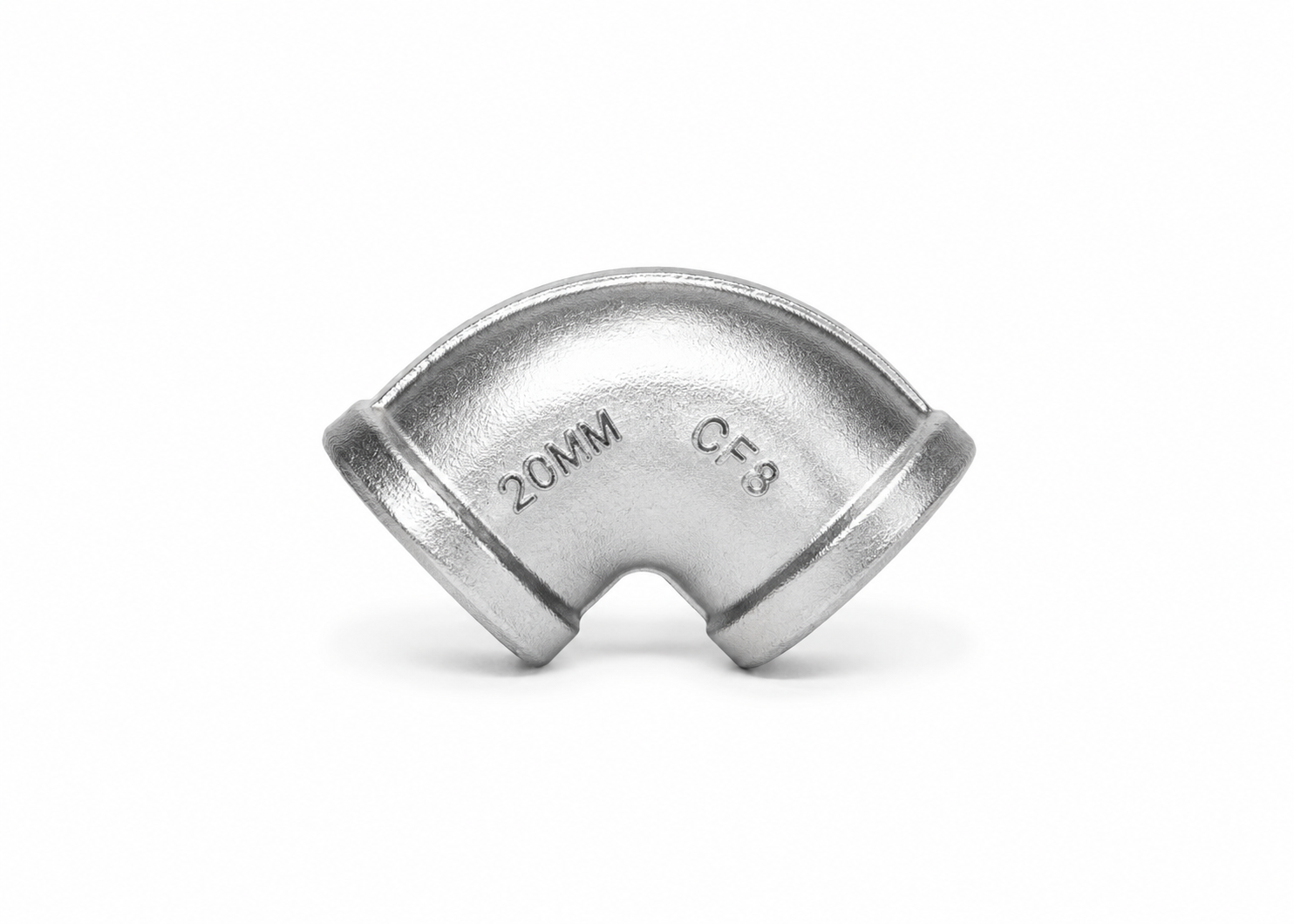

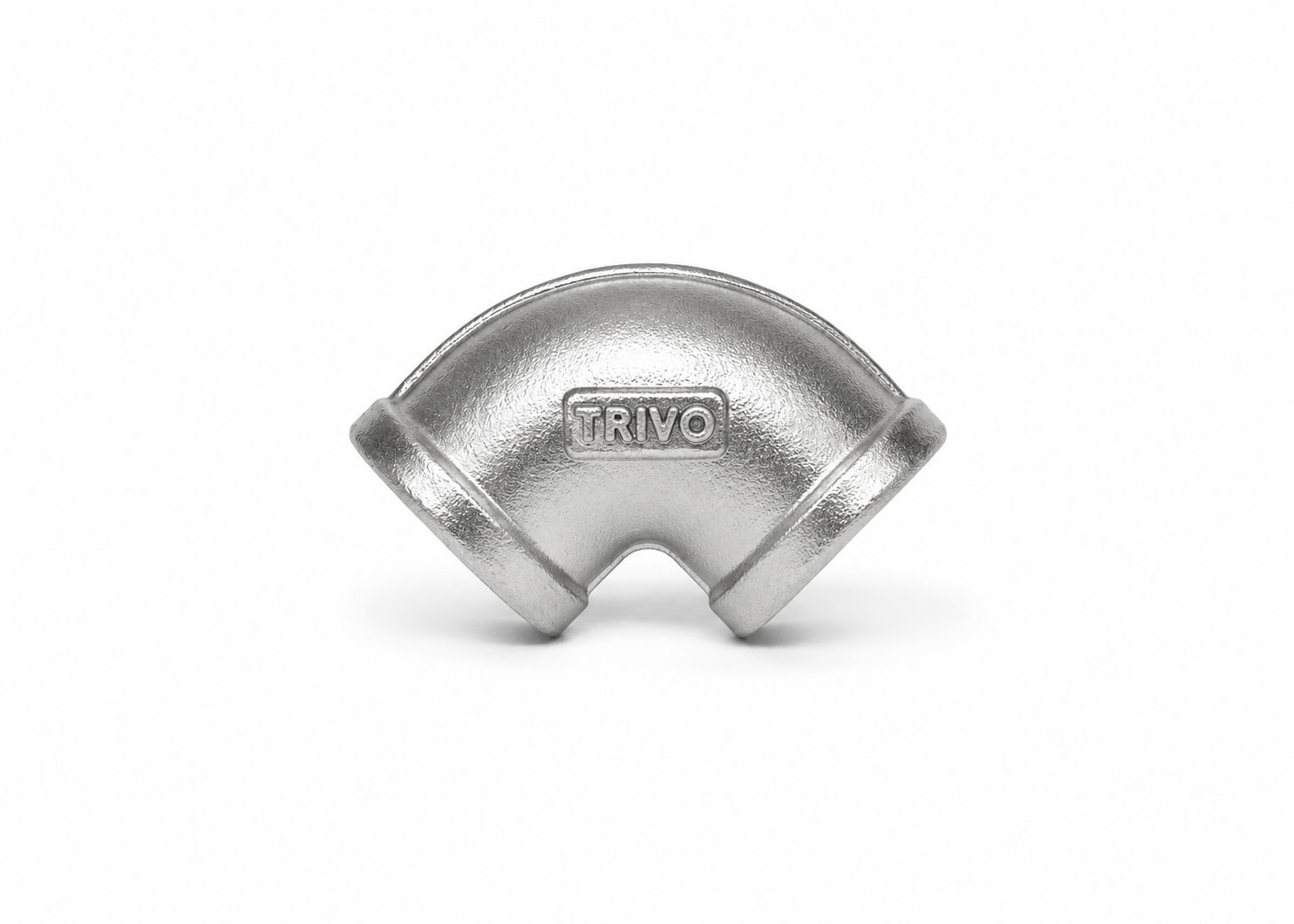

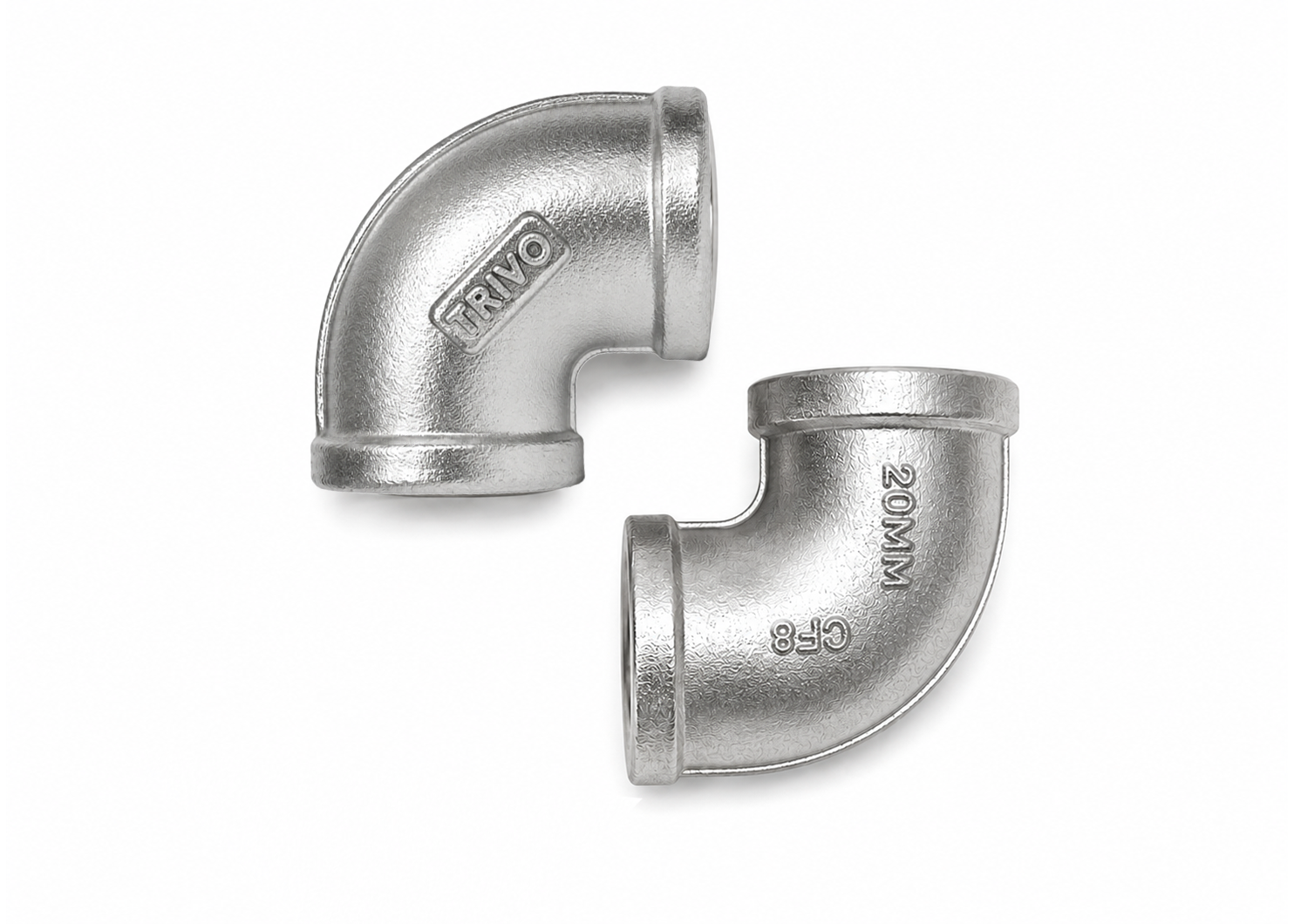

Features
- Investment-casted (Lost Wax Process) stainless steel
- Available in SS 304 (CF8) & SS 316 (CF8M) grades
- Precision-machined BSP / BSPT / NPT female threads
- 90° directional change with optimized flow path
- Pressure Rating: PN25
- Working Pressure: 25 Kg/cm² (356 psi)
- Smooth internal radius for minimal pressure drop
Suitability
Water Supply & DistributionOil & Gas PipelinesChemical & Petrochemical PlantsSteam & Air LinesHVAC & RefrigerationDairy & Food ProcessingFire Protection SystemsMarine & Shipbuilding
Specifications
| Size (Inch) | Size (mm) | A (mm) |
|---|---|---|
| 1/4" | 6 | 20 |
| 3/8" | 10 | 24 |
| 1/2" | 15 | 28 |
| 3/4" | 20 | 33 |
| 1" | 25 | 38 |
| 1-1/4" | 32 | 44 |
| 1-1/2" | 40 | 49 |
| 2" | 50 | 57 |
Custom Requirements
Need a custom specification?
We engineer custom fittings, valves, and adapters to your exact specifications. Send us your requirements and receive a technical quote within 48 hours.
