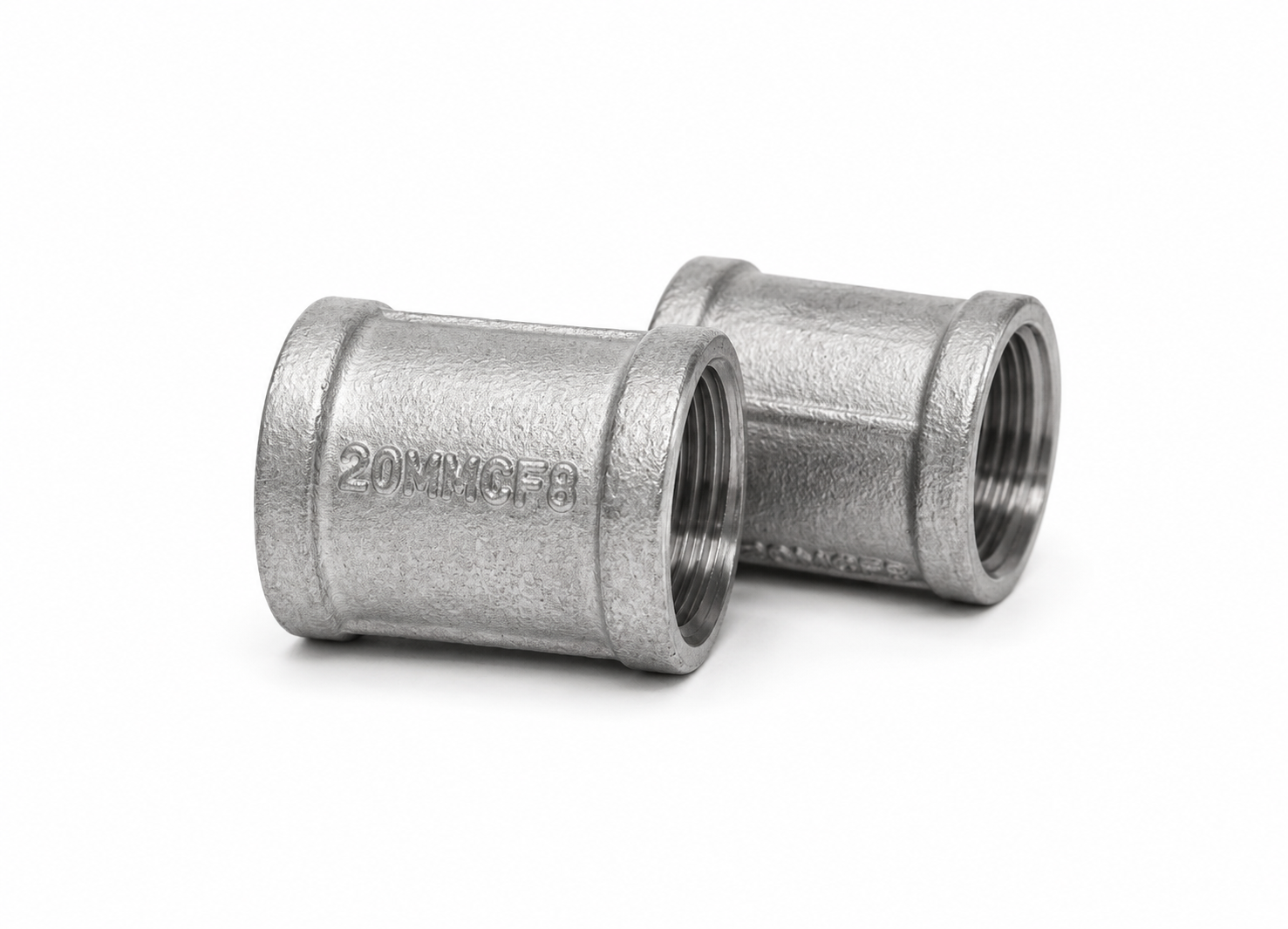

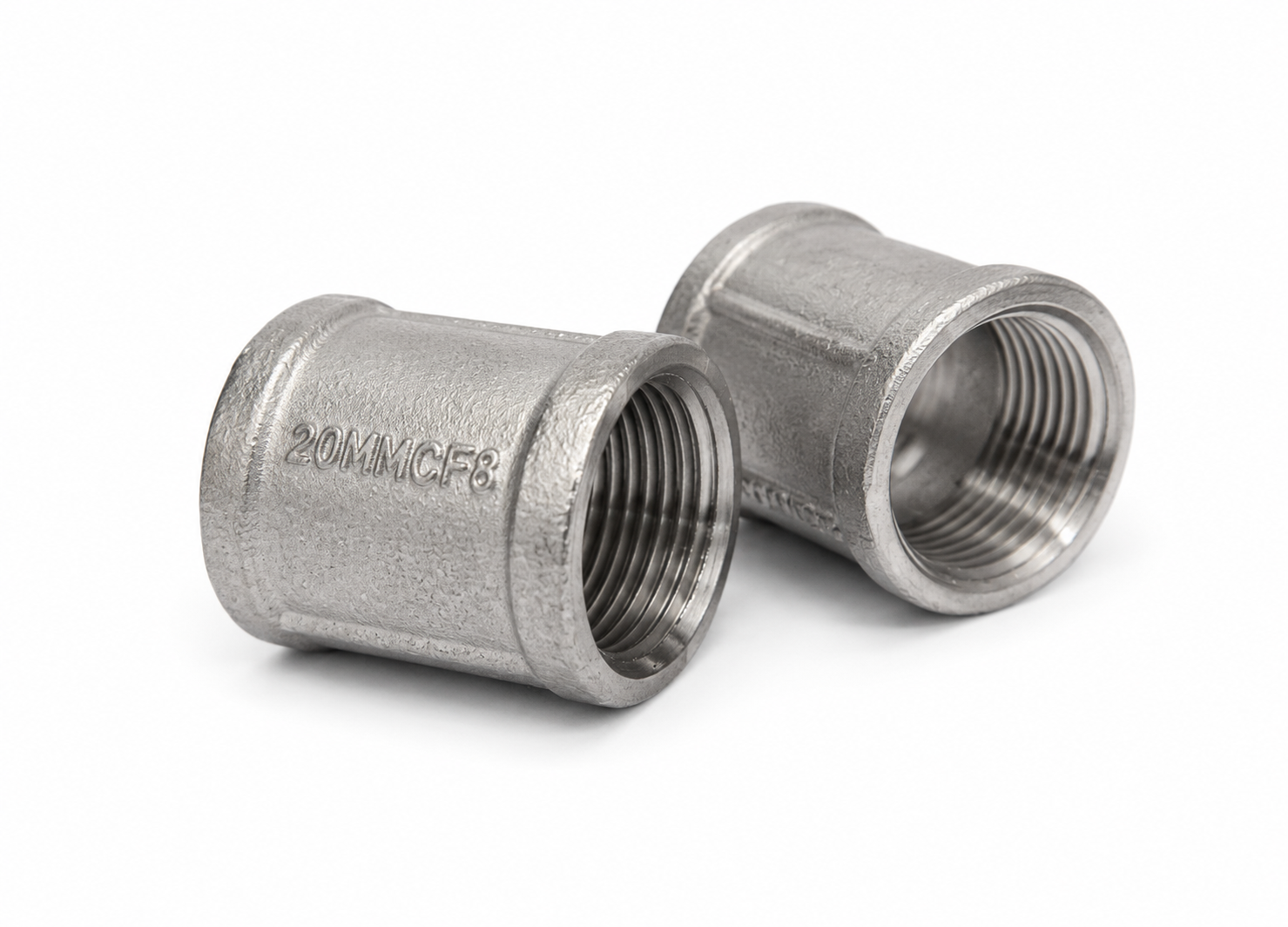

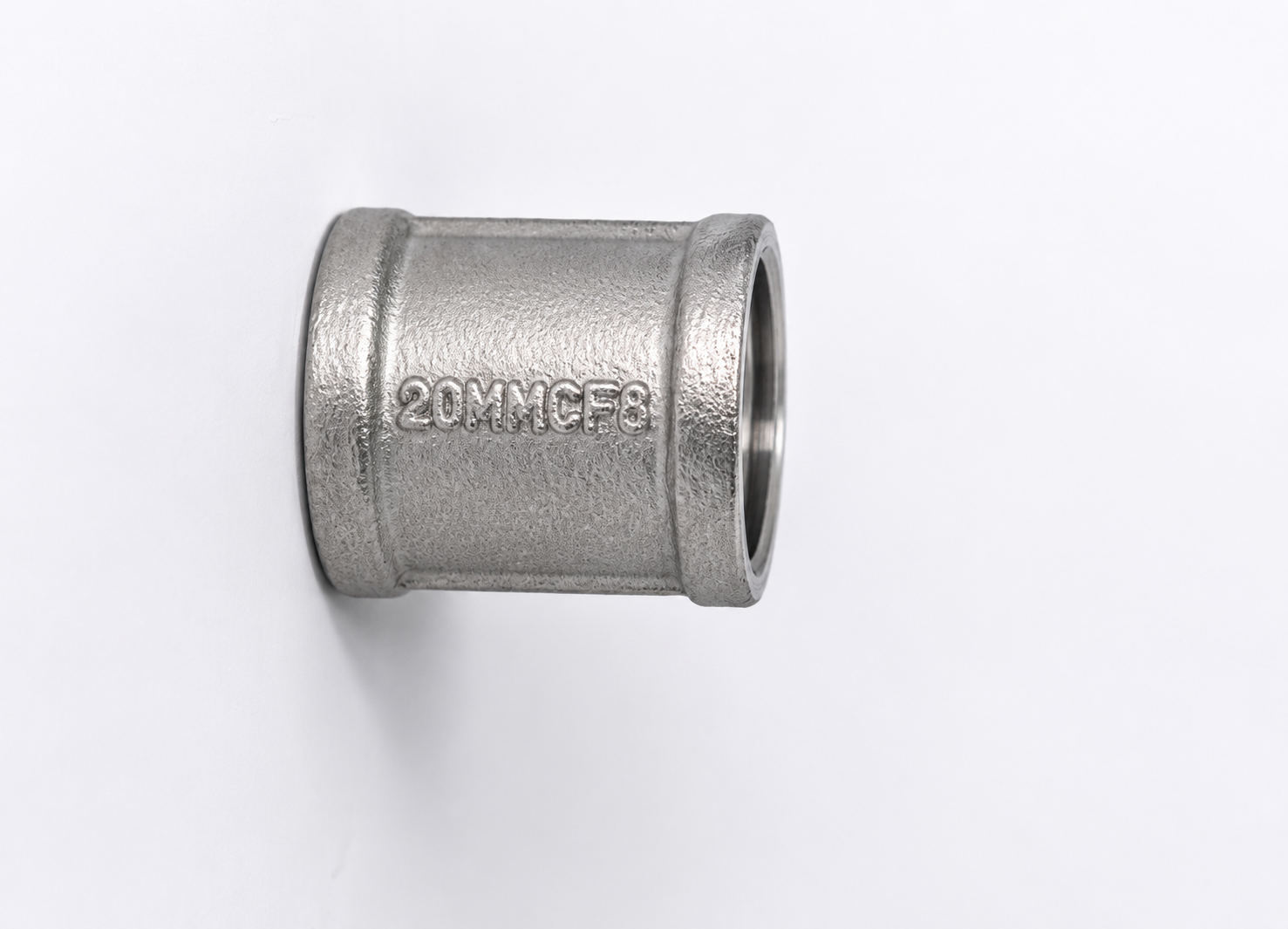

Socket Coupling
Material
SS 304/CF8
Size
15–50mm
Type
Socket
1 / 4

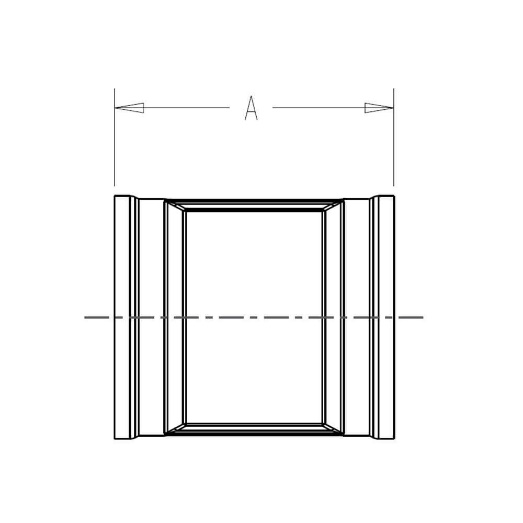

Technical Drawing
Features
- Investment-casted stainless steel body
- Full-bore internal design for unrestricted flow
- Available in SS 304 (CF8) & SS 316 (CF8M) grades
- Female × Female BSP threaded connection
- Pressure Rating: PN25
- Precision-machined parallel internal threads
- Compact design for space-constrained installations
- Available in full coupling & reducing coupling variants
Suitability
Water Supply SystemsCompressed Air LinesIndustrial Process PipingChemical PlantsSteam DistributionGeneral Purpose Pipe Joining
Specifications
| Size (Inch) | Size (mm) | L (mm) |
|---|---|---|
| 1/4" | 6 | 25 |
| 3/8" | 10 | 28 |
| 1/2" | 15 | 31 |
| 3/4" | 20 | 34 |
| 1" | 25 | 38 |
| 1-1/4" | 32 | 42 |
| 1-1/2" | 40 | 46 |
| 2" | 50 | 51 |
