Features

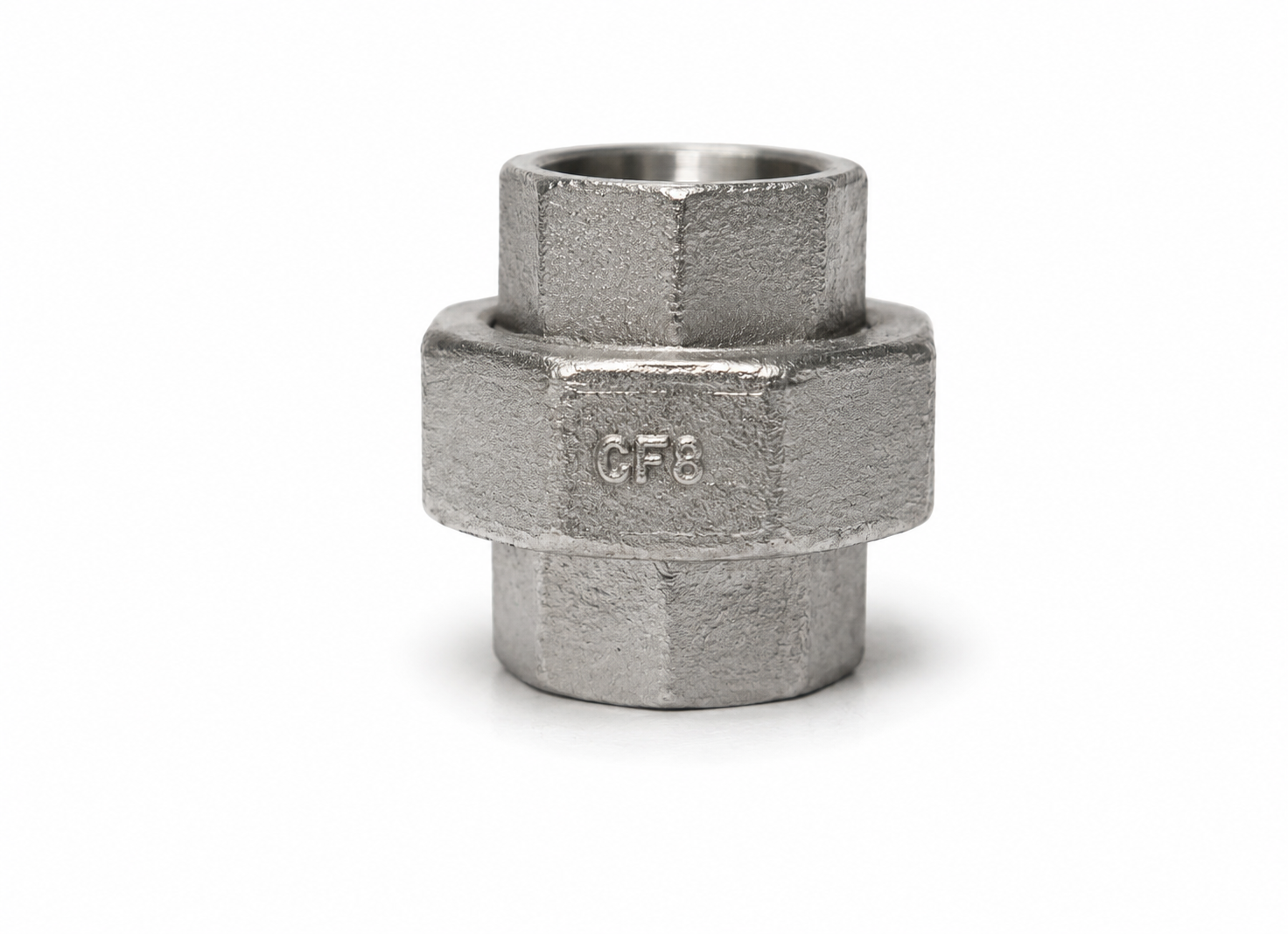

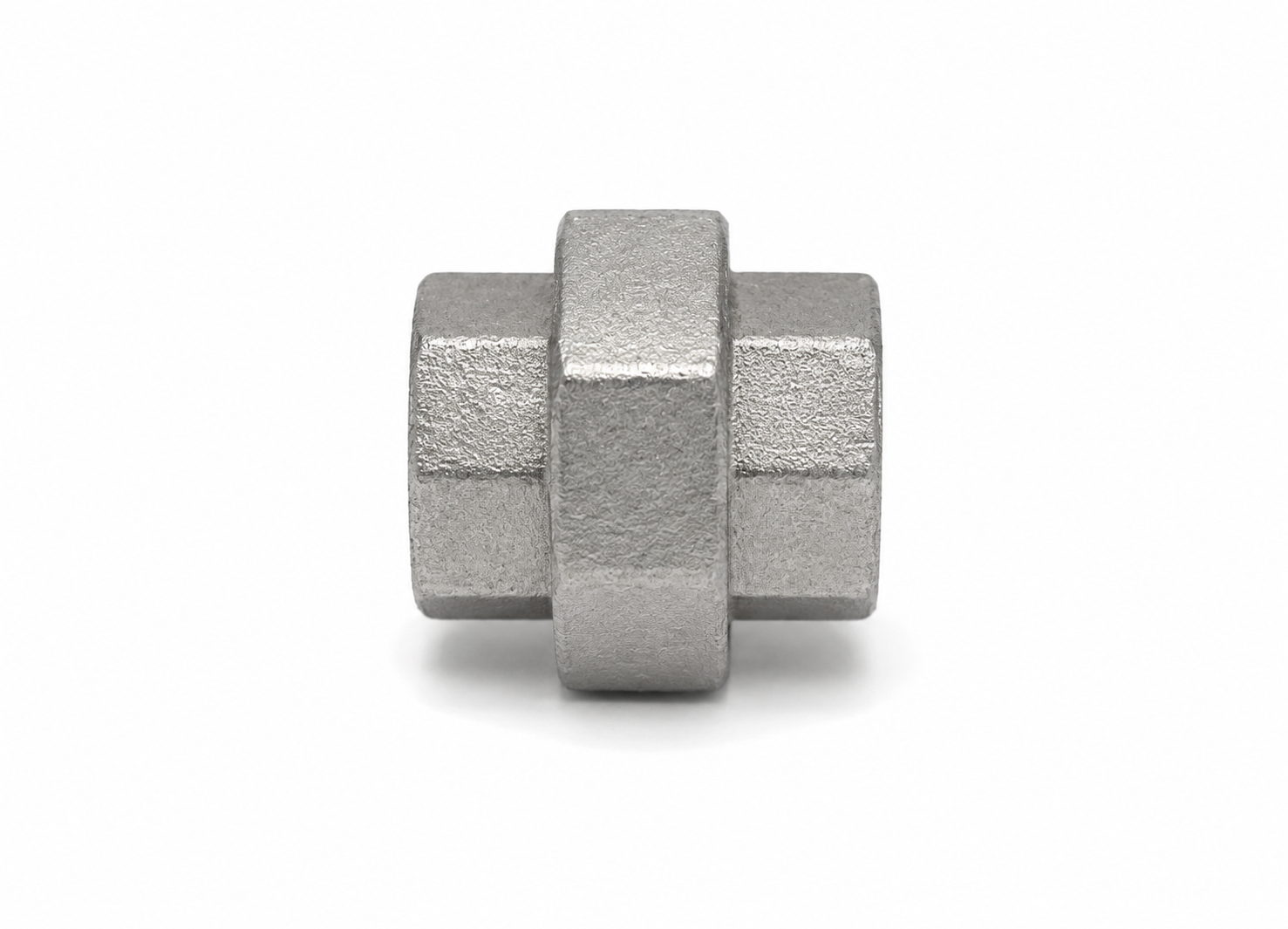

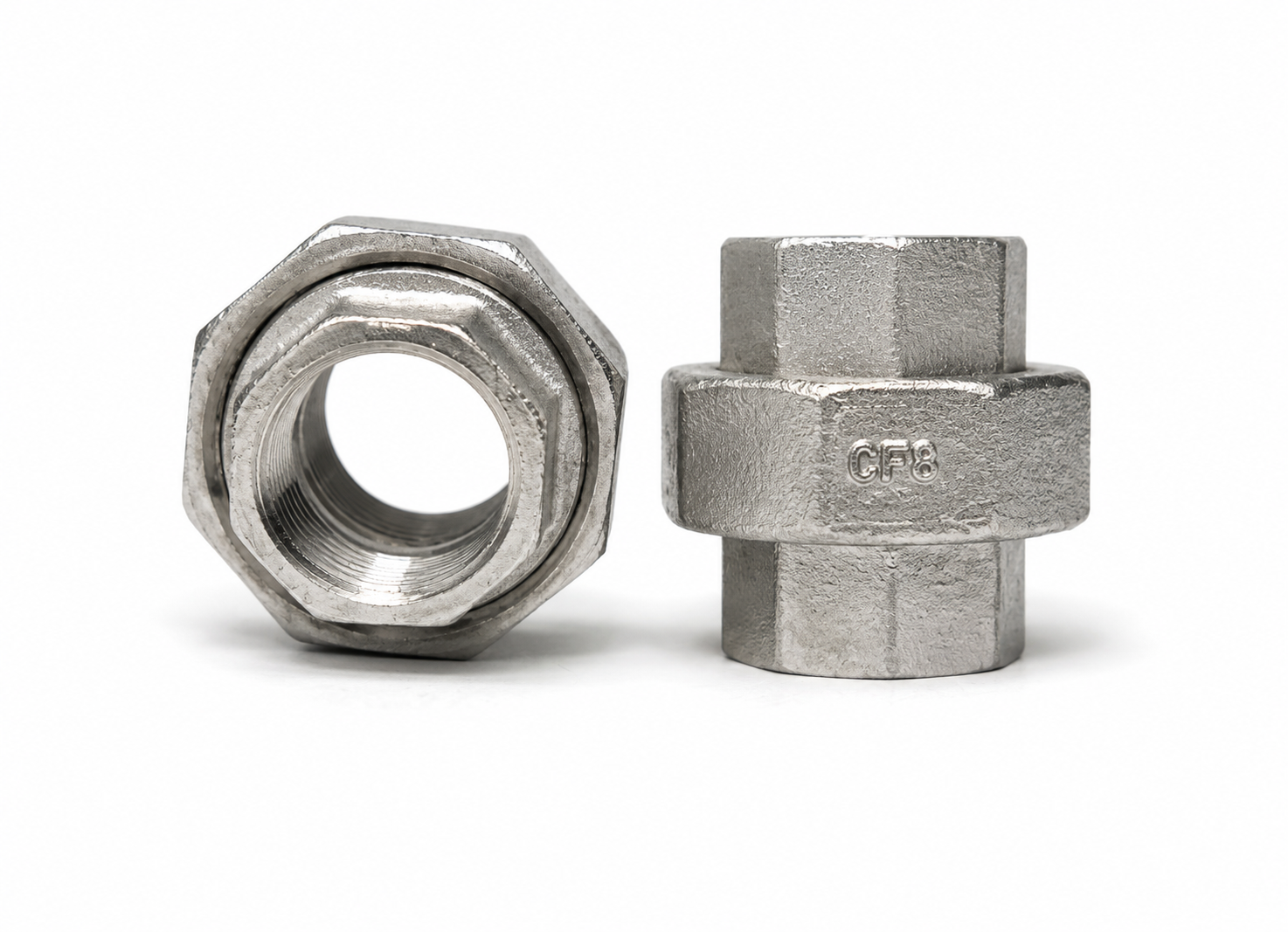

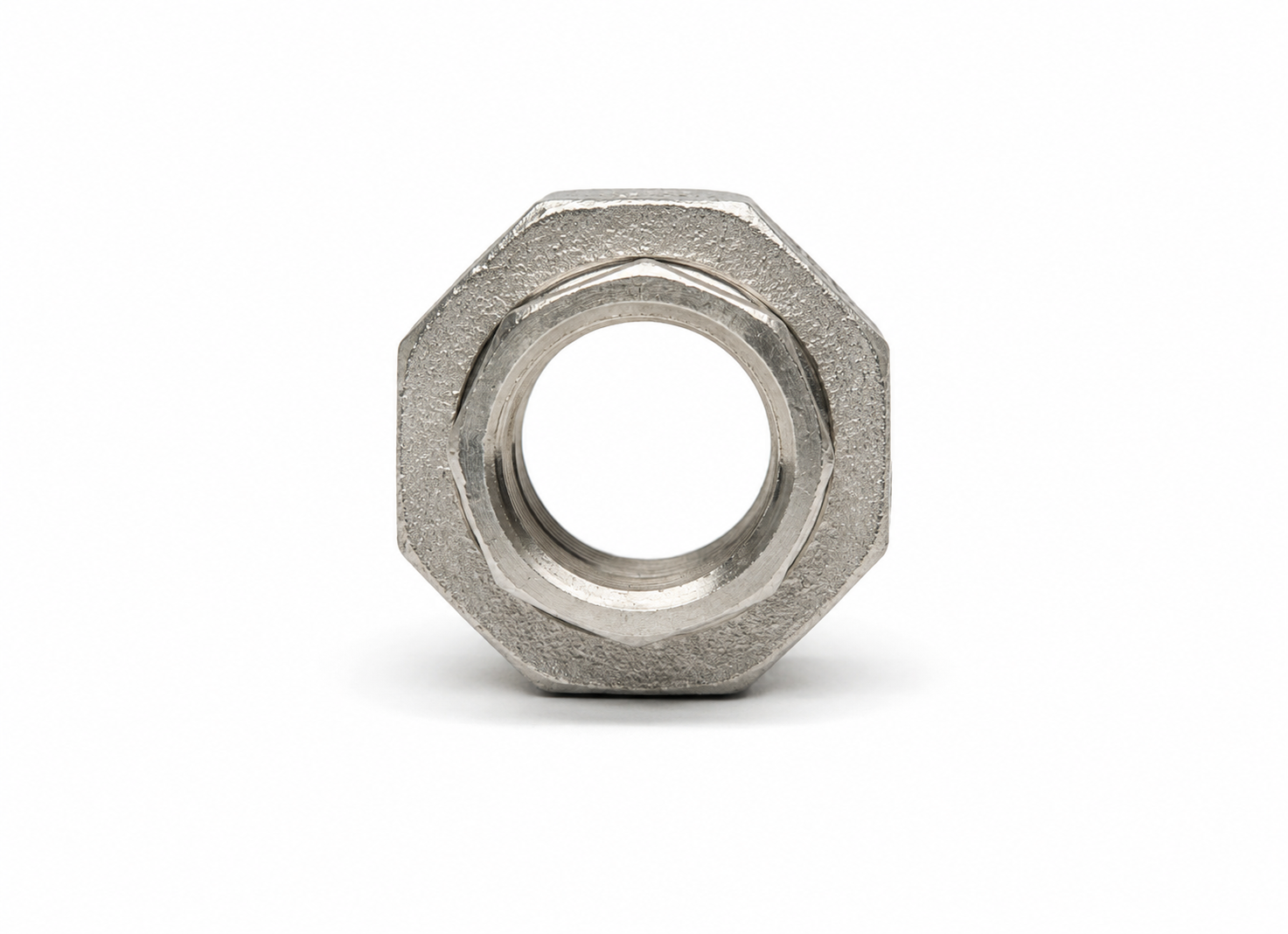

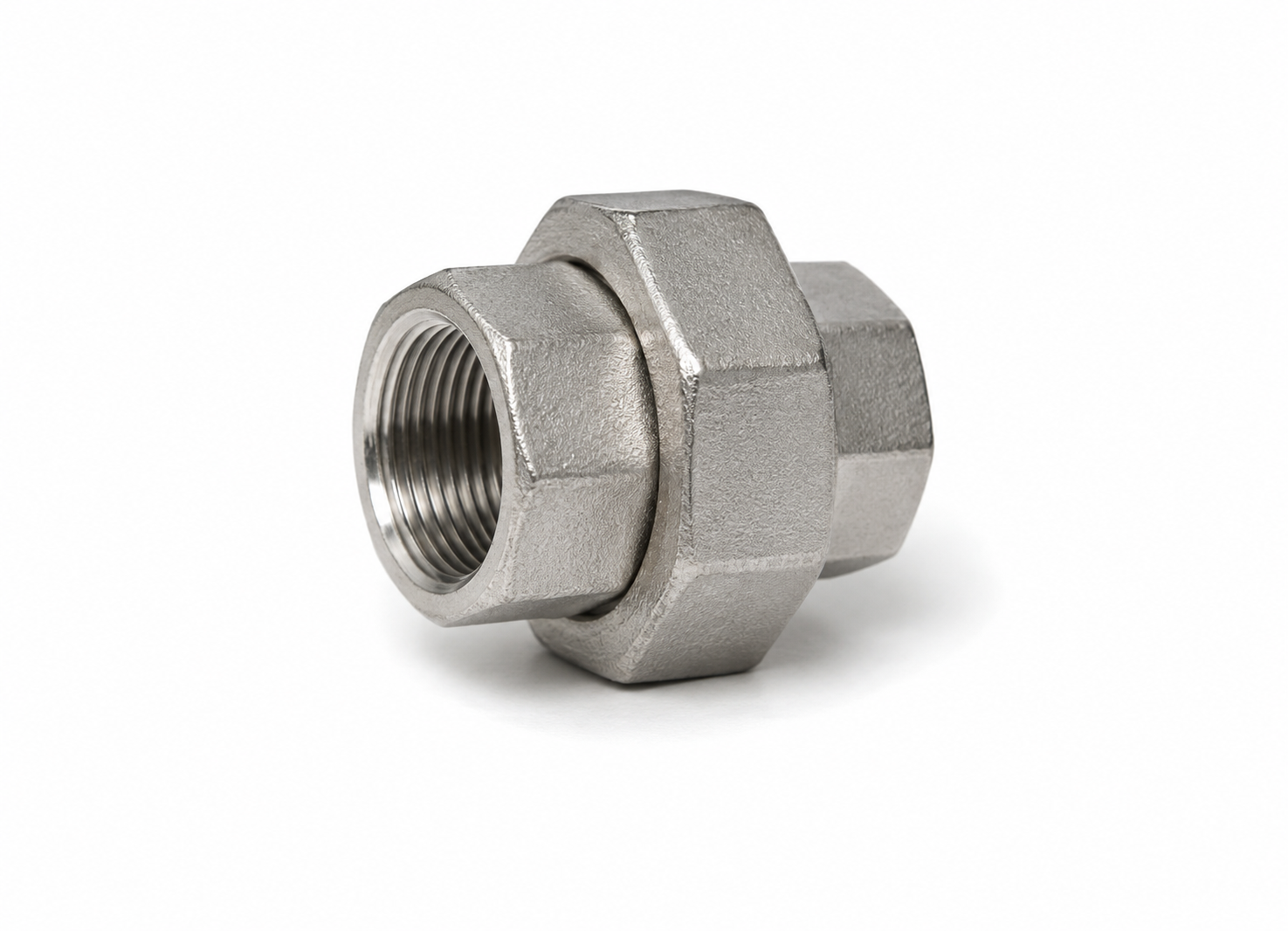

- Three-piece design (tail piece, nut & connector)
- Conical metal-to-metal seating for zero-leak joints
- Investment-casted SS 304 (CF8) / SS 316 (CF8M)
- Ground & lapped seating surfaces
- BSP / BSPT female threaded ends
- Pressure Rating: PN25
- Easy assembly & disassembly without pipe rotation
- Enables maintenance access without cutting pipes
Suitability
Water Treatment PlantsSteam & Condensate LinesChemical ProcessingOil & Gas PipelinesMarine & OffshorePharmaceutical & Food Processing
Specifications
| Size (Inch) | Size (mm) | L (mm) |
|---|---|---|
| 1/4" | 6 | 41 |
| 3/8" | 10 | 46 |
| 1/2" | 15 | 51 |
| 3/4" | 20 | 57 |
| 1" | 25 | 65 |
| 1-1/4" | 32 | 73 |
| 1-1/2" | 40 | 78 |
| 2" | 50 | 89 |
Custom Requirements
Need a custom specification?
We engineer custom fittings, valves, and adapters to your exact specifications. Send us your requirements and receive a technical quote within 48 hours.
