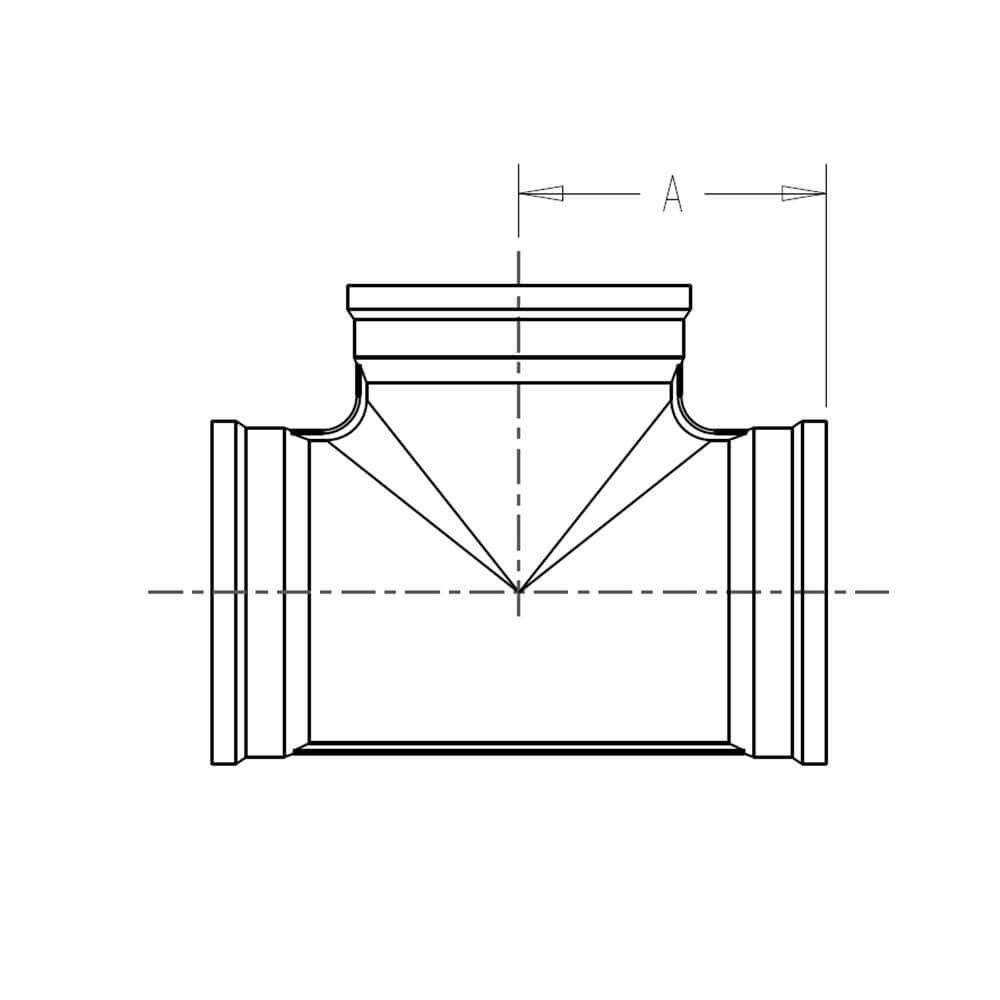

Technical Drawing

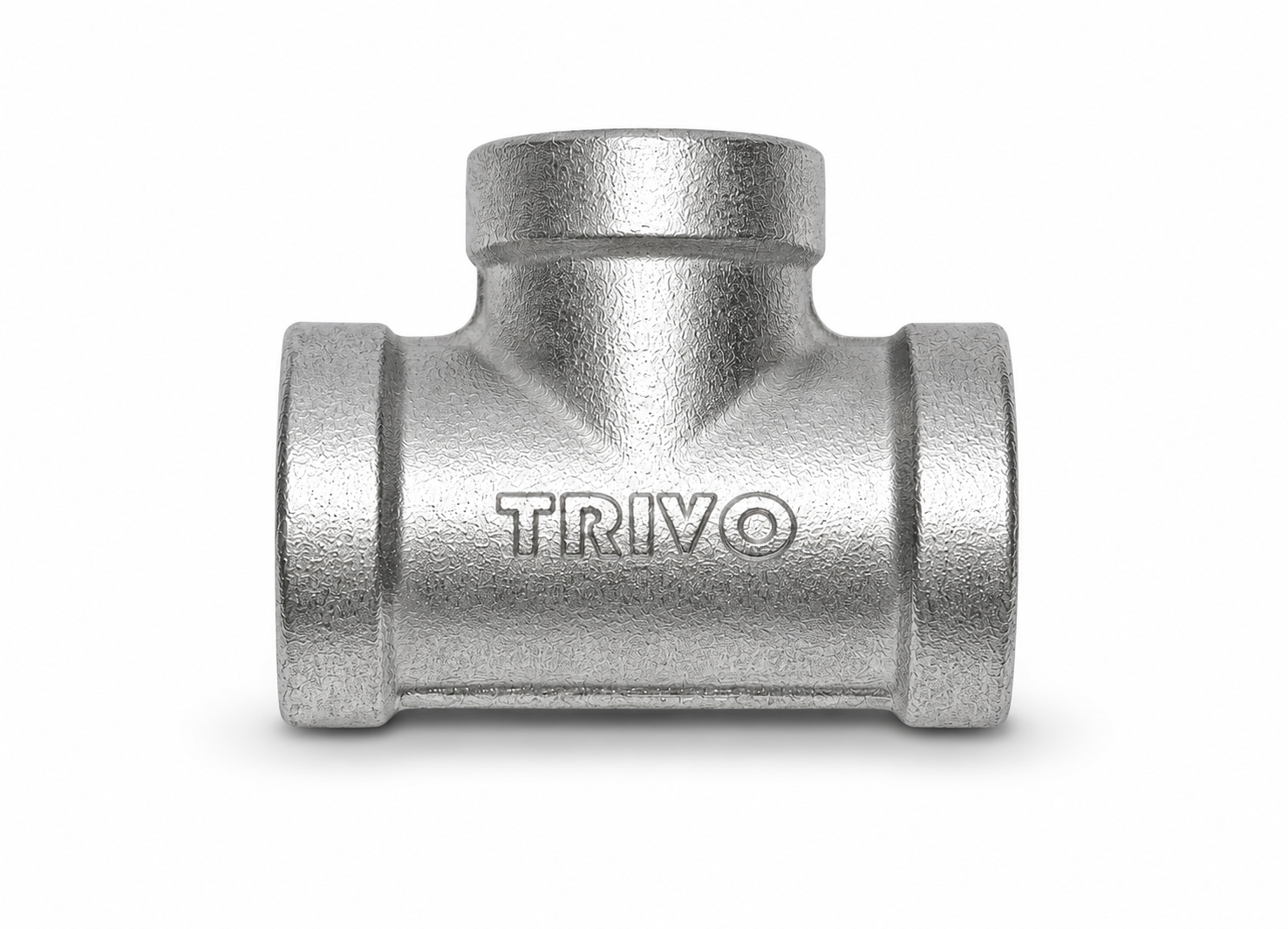

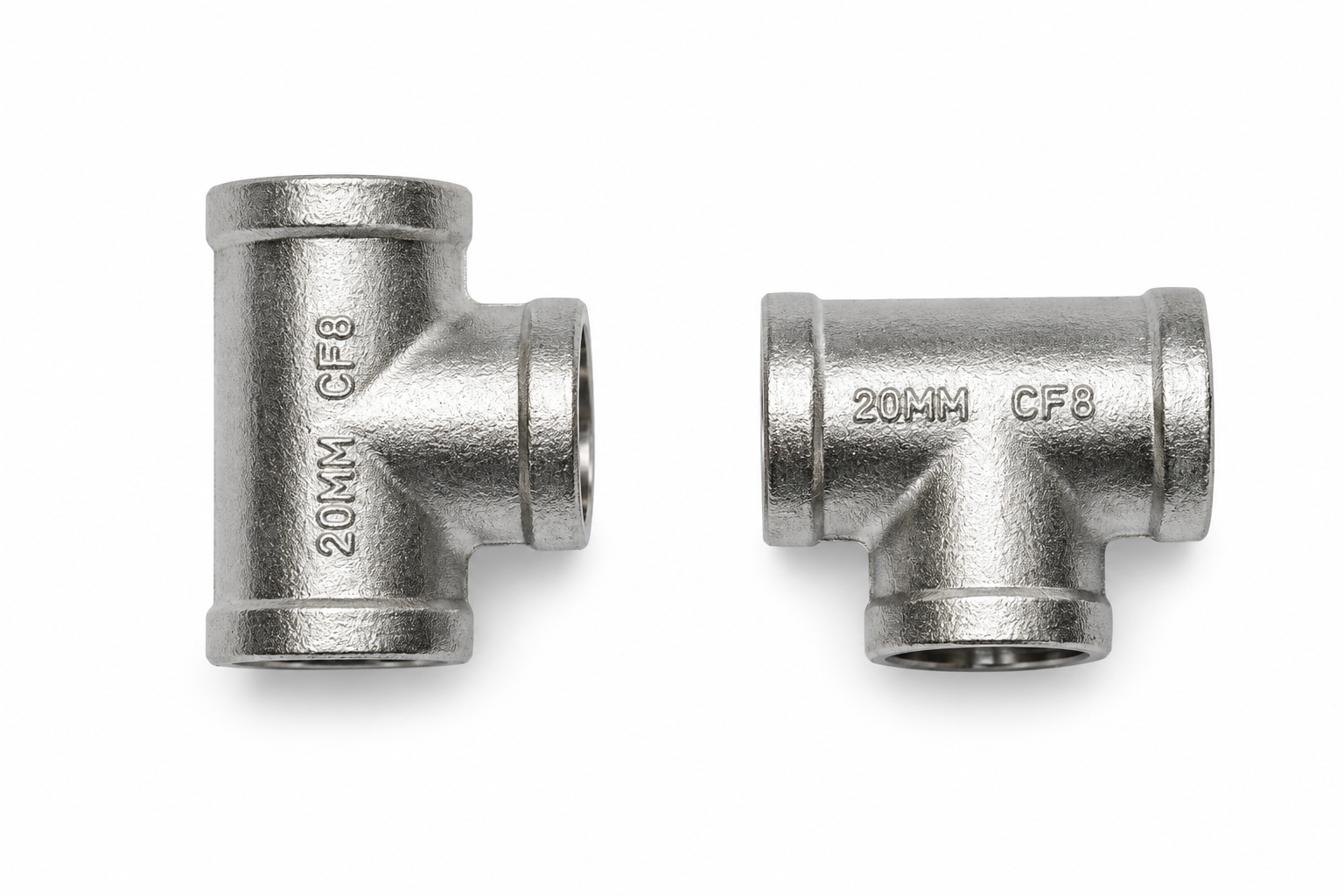

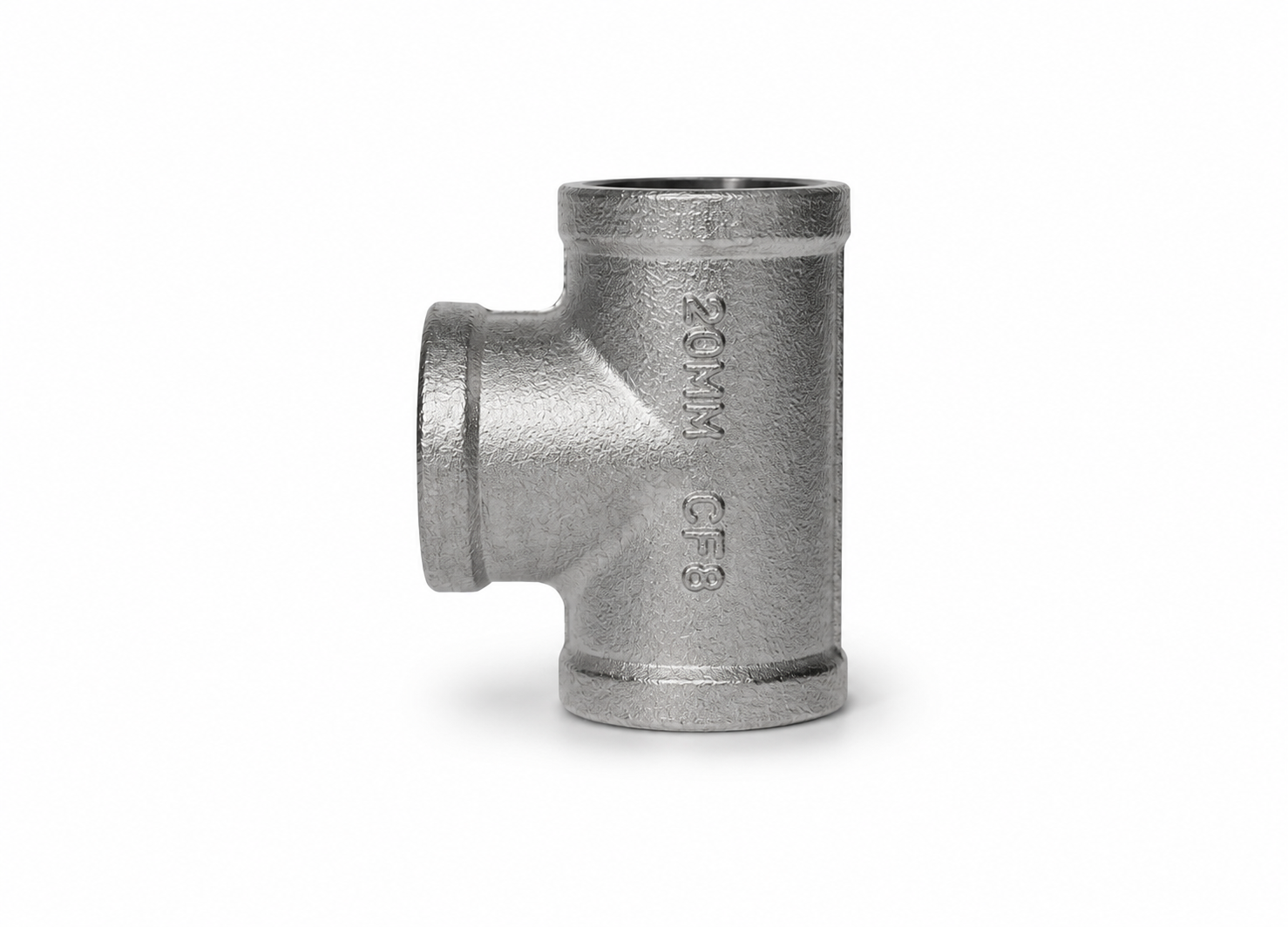

Features
- Investment-casted stainless steel construction
- Equal bore three-way branch connection
- Available in SS 304 (CF8) & SS 316 (CF8M) grades
- BSP / BSPT / NPT female threaded ports
- Pressure Rating: PN25
- Uniform flow distribution across all three outlets
- Precision-machined sealing surfaces
- Conforms to IS 1879 / ASTM A351 standards
Suitability
Water Distribution NetworksProcess Piping SystemsChemical & Pharmaceutical PlantsHVAC & RefrigerationFire Sprinkler SystemsOil & Gas Distribution
Specifications
| Size (Inch) | Size (mm) | C (mm) | E (mm) |
|---|---|---|---|
| 1/4" | 6 | 21 | 21 |
| 3/8" | 10 | 25 | 25 |
| 1/2" | 15 | 29 | 29 |
| 3/4" | 20 | 34 | 34 |
| 1" | 25 | 40 | 40 |
| 1-1/4" | 32 | 45 | 45 |
| 1-1/2" | 40 | 50 | 50 |
| 2" | 50 | 60 | 60 |
Custom Requirements
Need a custom specification?
We engineer custom fittings, valves, and adapters to your exact specifications. Send us your requirements and receive a technical quote within 48 hours.
