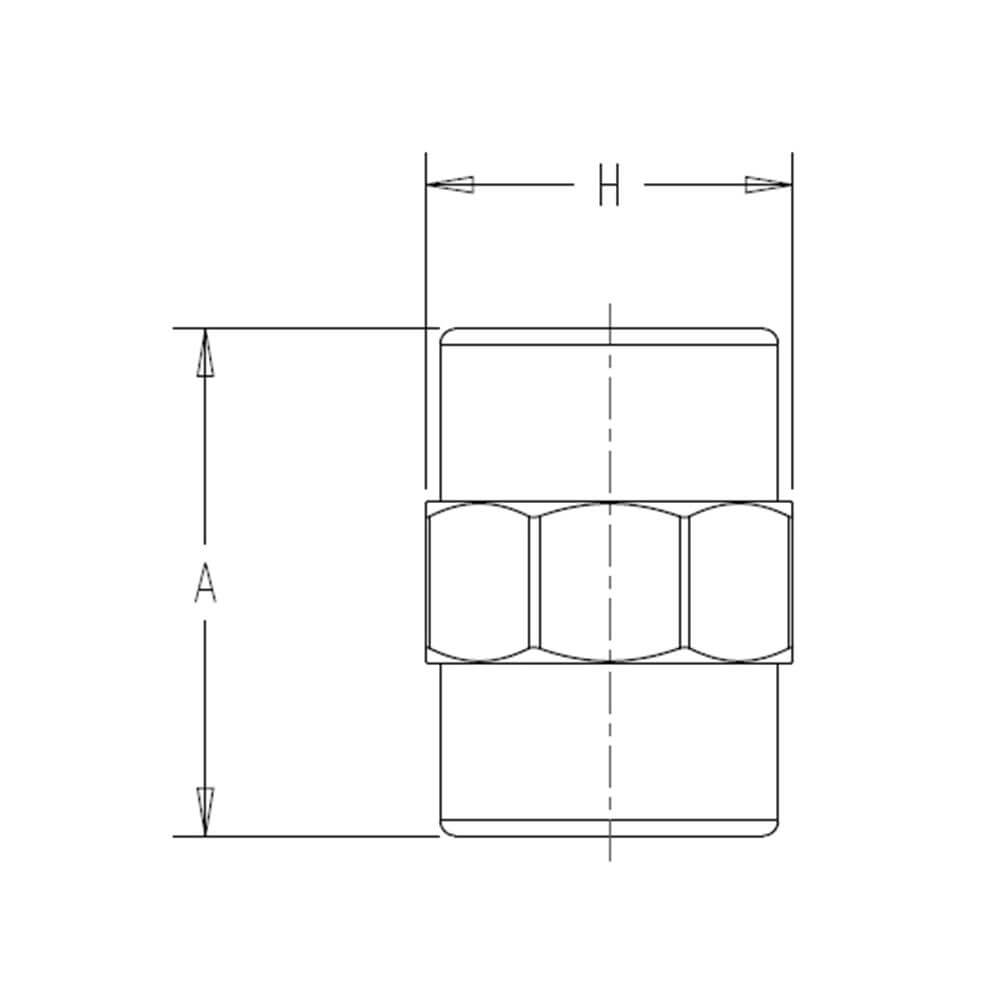

Technical Drawing
Features

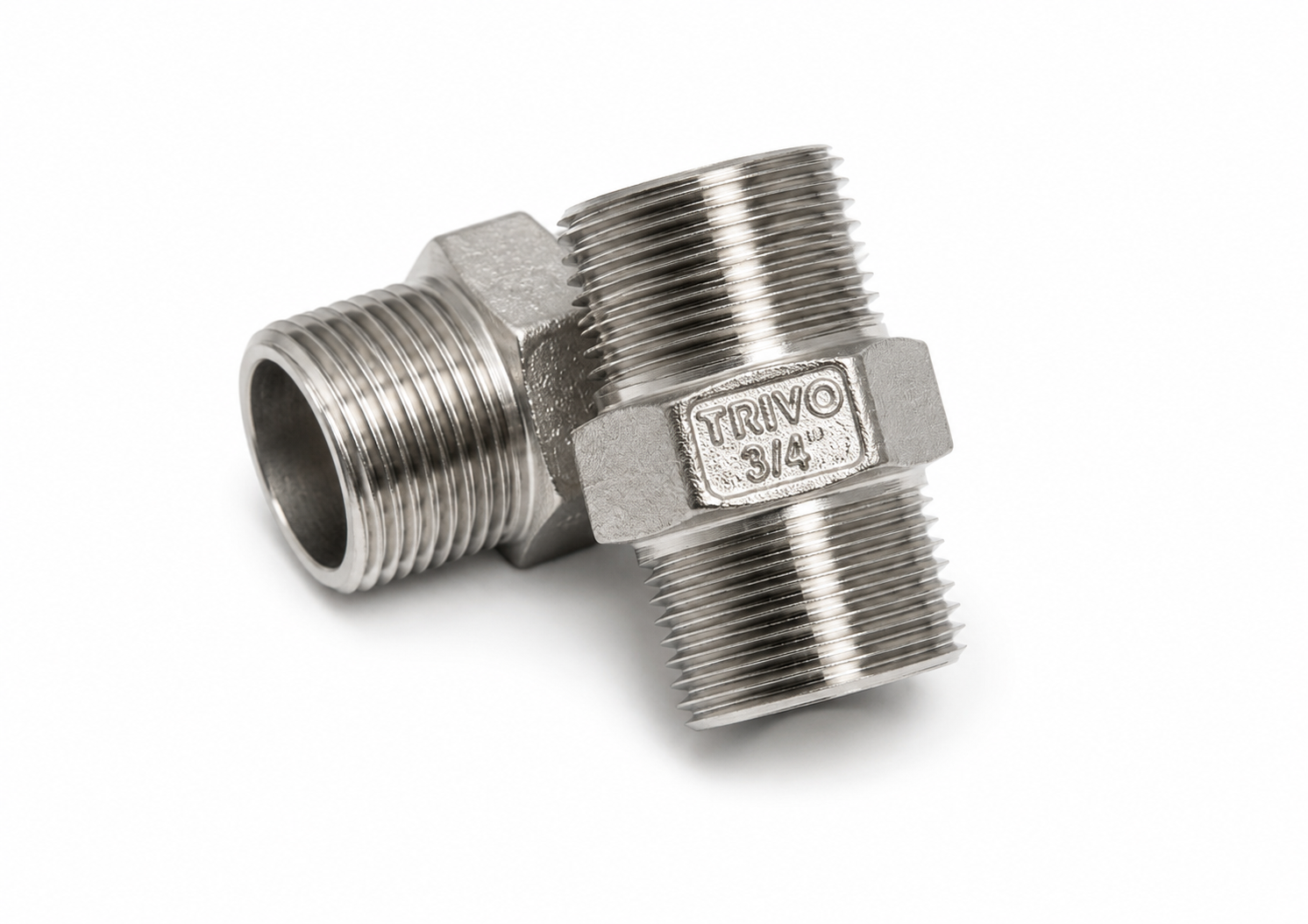

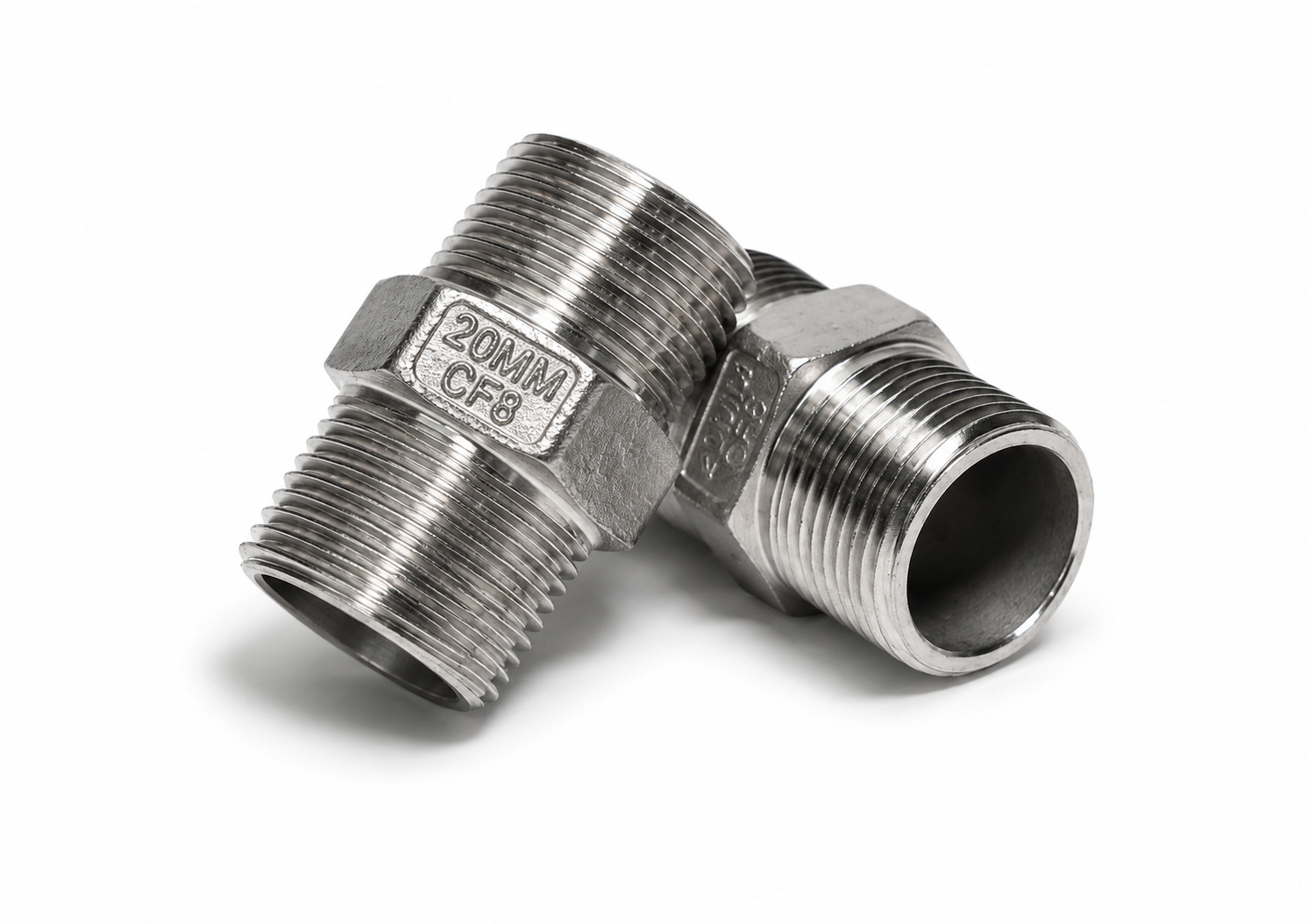

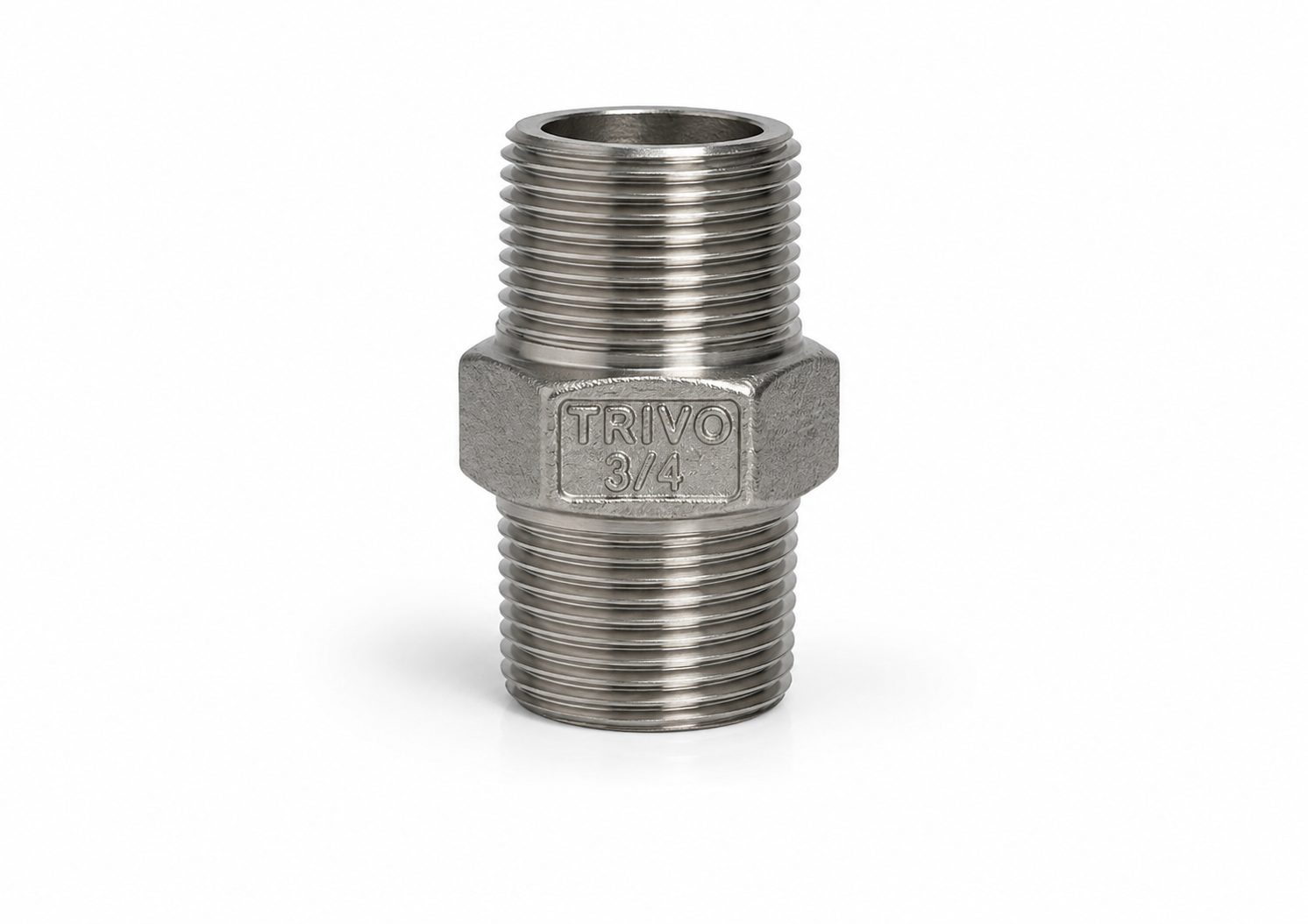

- Investment-casted stainless steel body
- Central hexagonal grip for secure wrench tightening
- Available in SS 304 (CF8) & SS 316 (CF8M) grades
- Male × Male BSP / BSPT / NPT threads
- Pressure Rating: PN25
- Bridges two female-threaded fittings or ports
- Precision thread cut for leak-proof connections
- Available in close, short & long barrel lengths
Suitability
Industrial Piping ConnectionsHydraulic & Pneumatic SystemsWater & Gas DistributionChemical ProcessingHVAC SystemsInstrumentation & Gauge Connections
Specifications
| Size (Inch) | Size (mm) | L (mm) | S (mm) |
|---|---|---|---|
| 1/4" | 6 | 30 | 14 |
| 3/8" | 10 | 33 | 17 |
| 1/2" | 15 | 38 | 22 |
| 3/4" | 20 | 42 | 27 |
| 1" | 25 | 48 | 32 |
| 1-1/4" | 32 | 53 | 36 |
| 1-1/2" | 40 | 57 | 41 |
| 2" | 50 | 65 | 50 |
Custom Requirements
Need a custom specification?
We engineer custom fittings, valves, and adapters to your exact specifications. Send us your requirements and receive a technical quote within 48 hours.
