/ End Cap

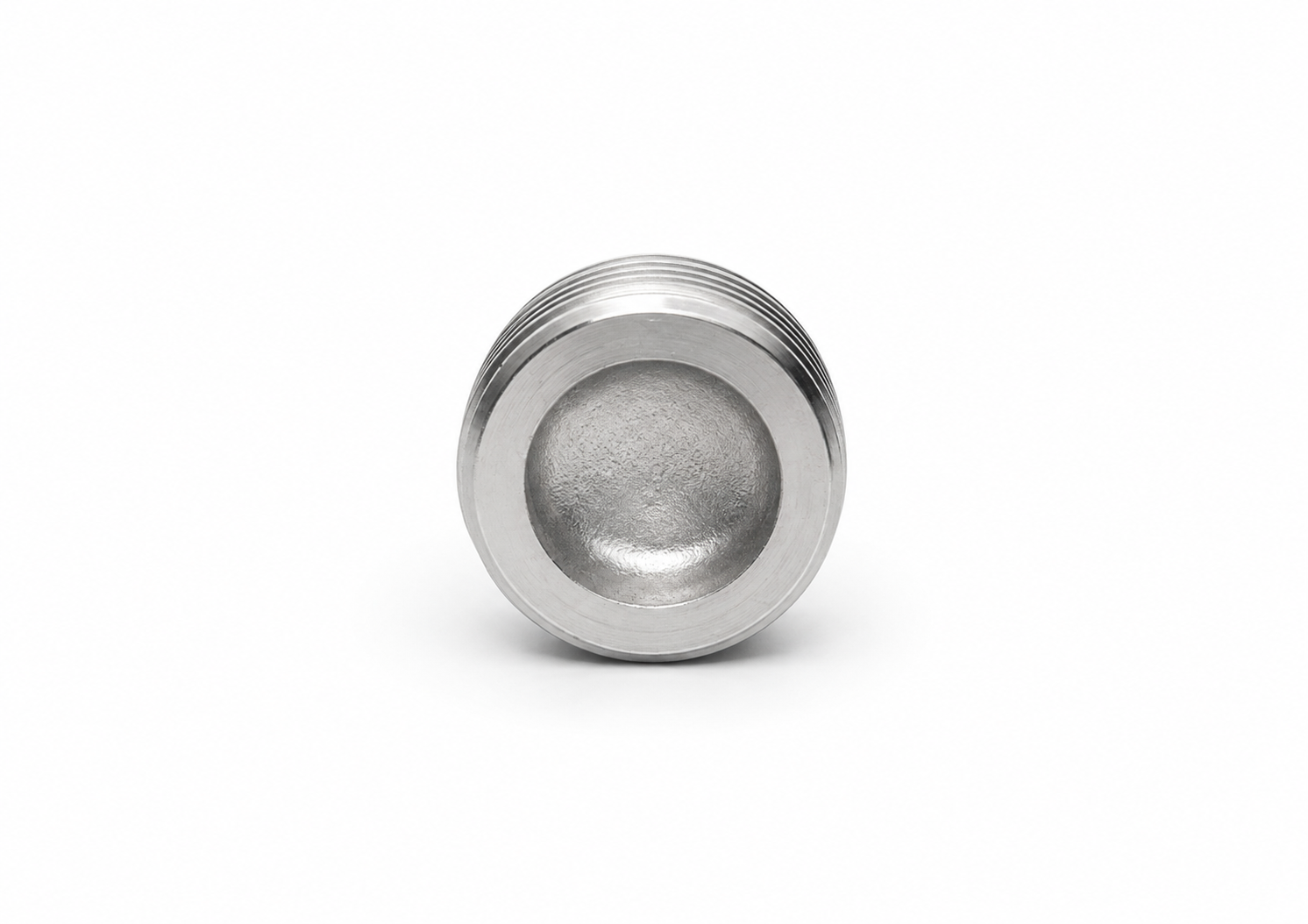

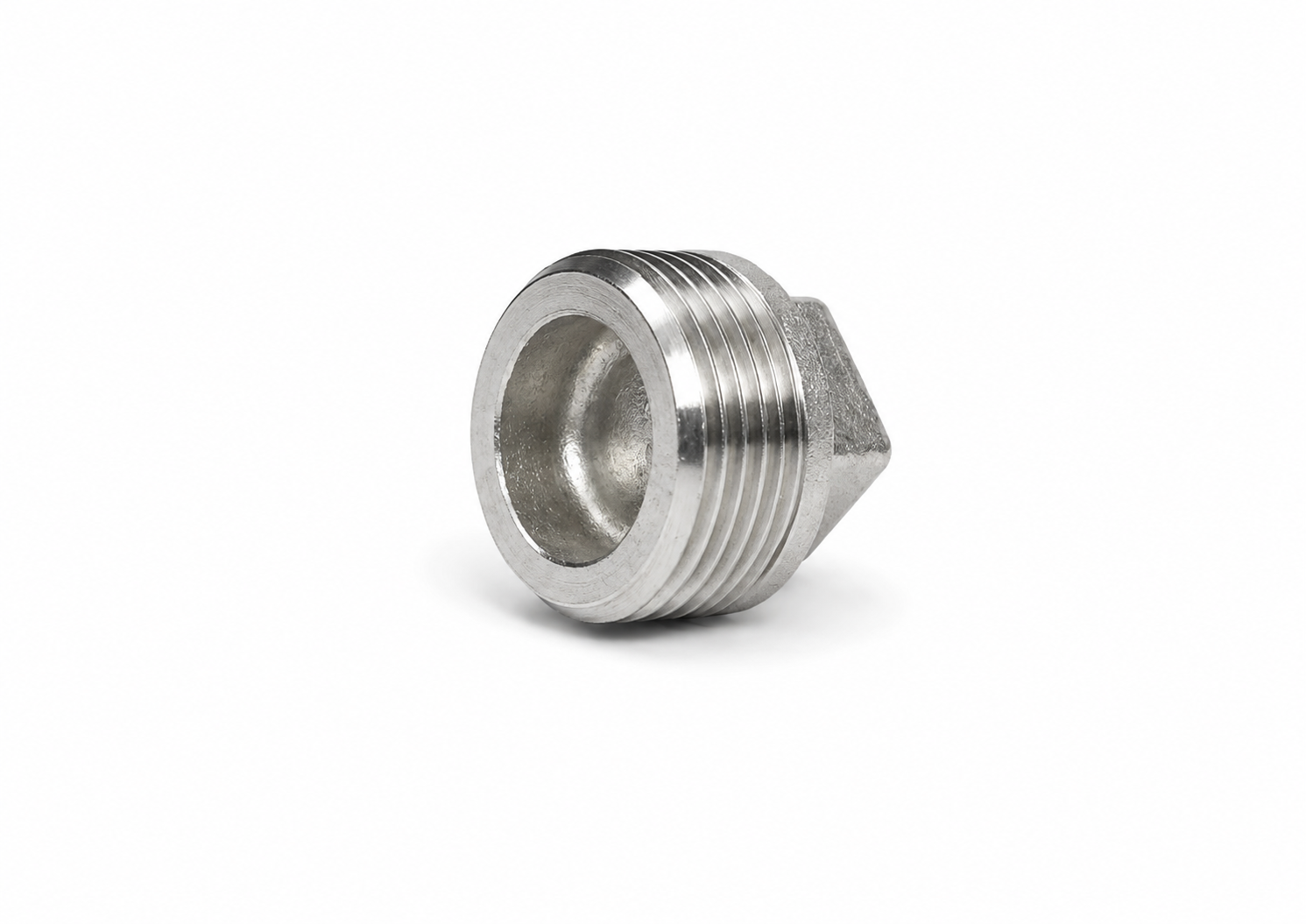

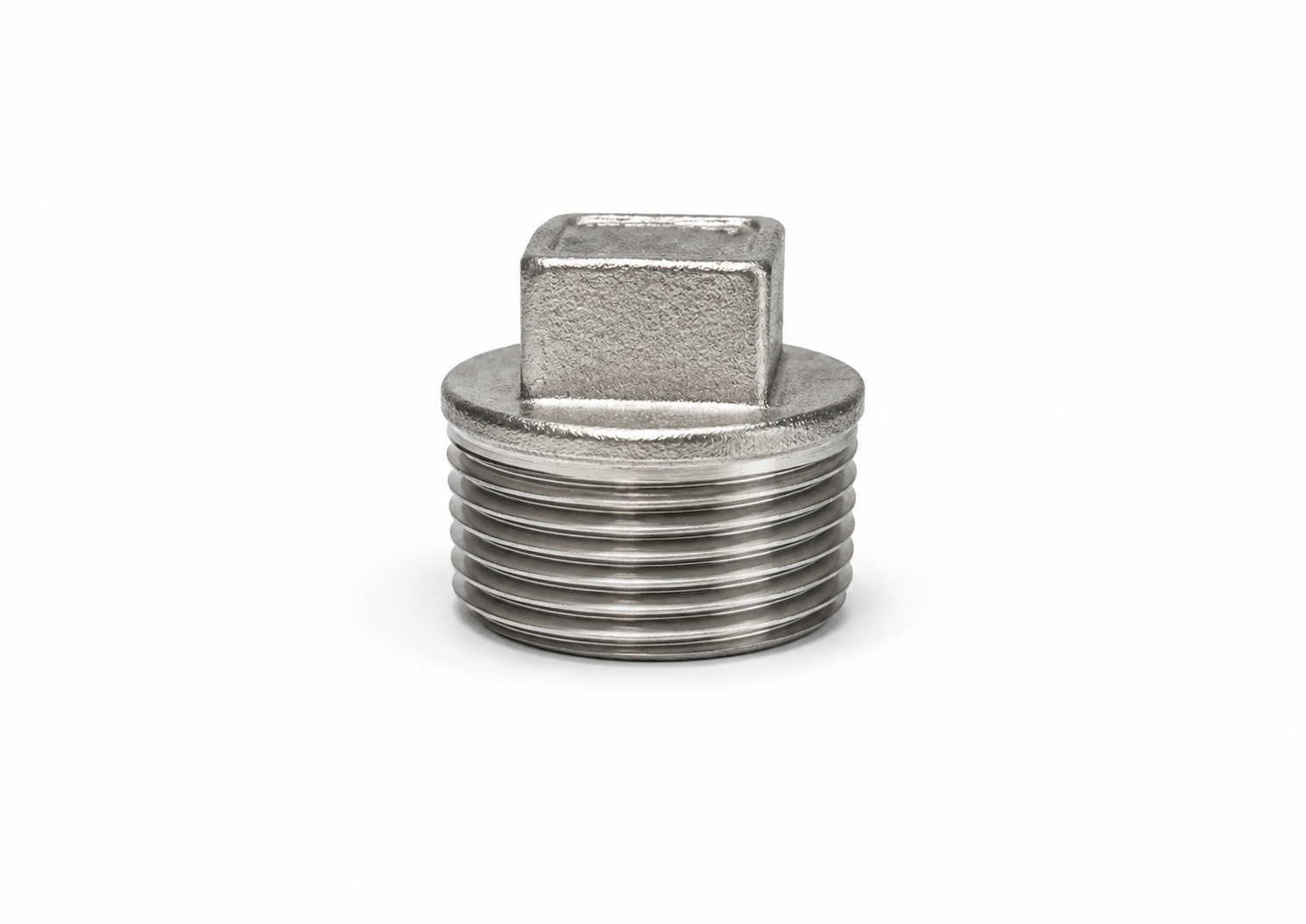

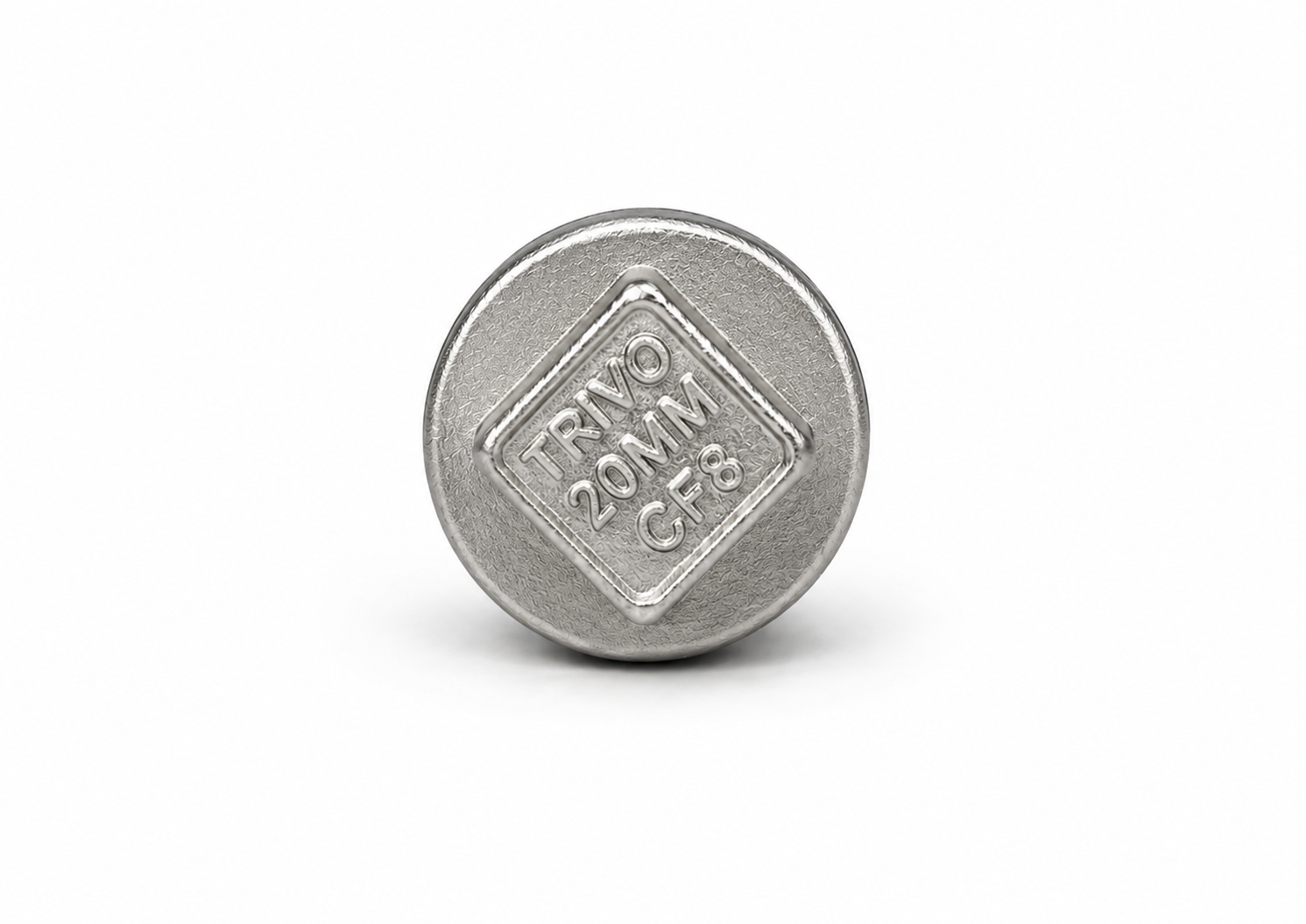

Hex Plug / End Cap
Material
SS 304/CF8
Size
15–50mm
Type
End Cap
1 / 5

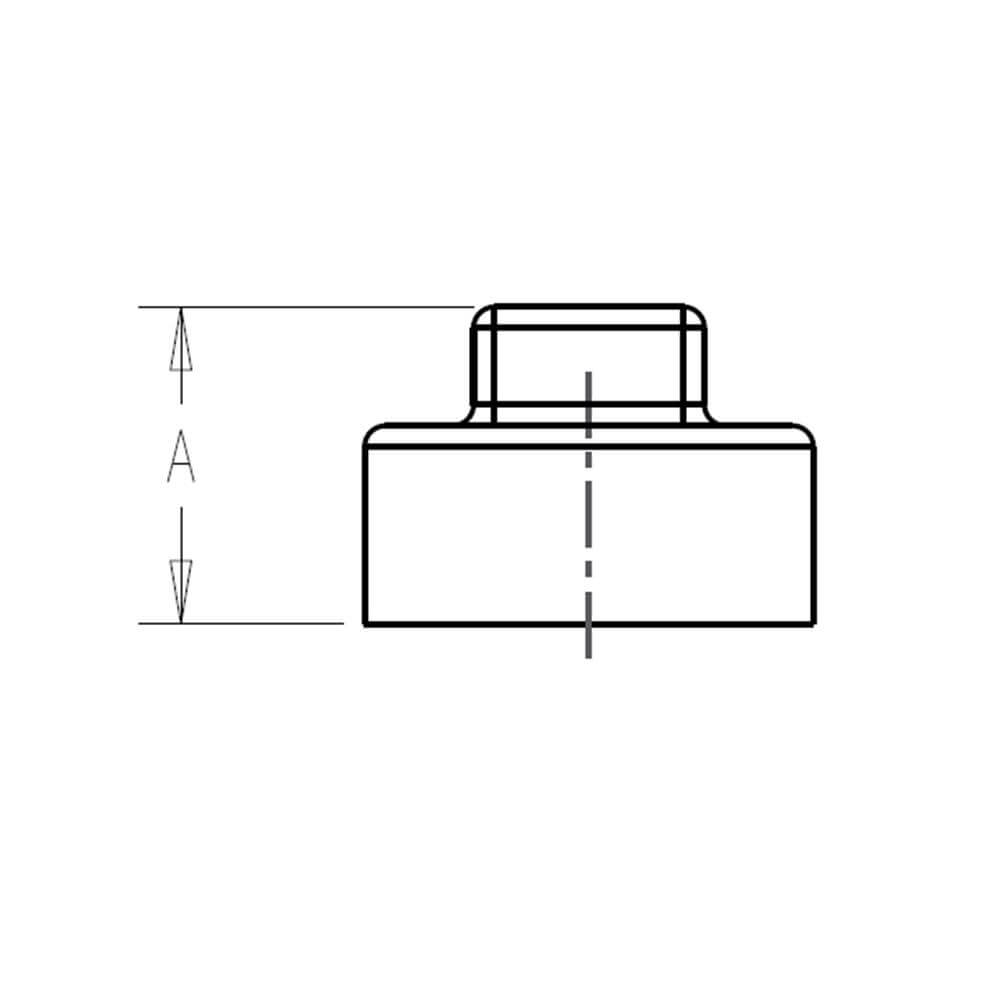

Technical Drawing
Features
- Investment-casted stainless steel construction
- Hexagonal head for easy wrench installation
- Available in SS 304 (CF8) & SS 316 (CF8M) grades
- Male BSP / BSPT / NPT external threads
- Pressure Rating: PN25
- Seals dead-end pipe openings securely
- PTFE tape compatible precision thread finish
- Corrosion & chemical resistant in harsh environments
Suitability
Pipeline Termination & SealingPressure Testing & BlankingWater Treatment FacilitiesChemical & Process IndustriesSteam & Gas LinesMarine & Offshore Applications
Specifications
| Size (Inch) | Size (mm) | L (mm) |
|---|---|---|
| 1/4" | 6 | 17 |
| 3/8" | 10 | 19 |
| 1/2" | 15 | 22 |
| 3/4" | 20 | 25 |
| 1" | 25 | 29 |
| 1-1/4" | 32 | 32 |
| 1-1/2" | 40 | 35 |
| 2" | 50 | 40 |
Custom Requirements
Need a custom specification?
We engineer custom fittings, valves, and adapters to your exact specifications. Send us your requirements and receive a technical quote within 48 hours.
