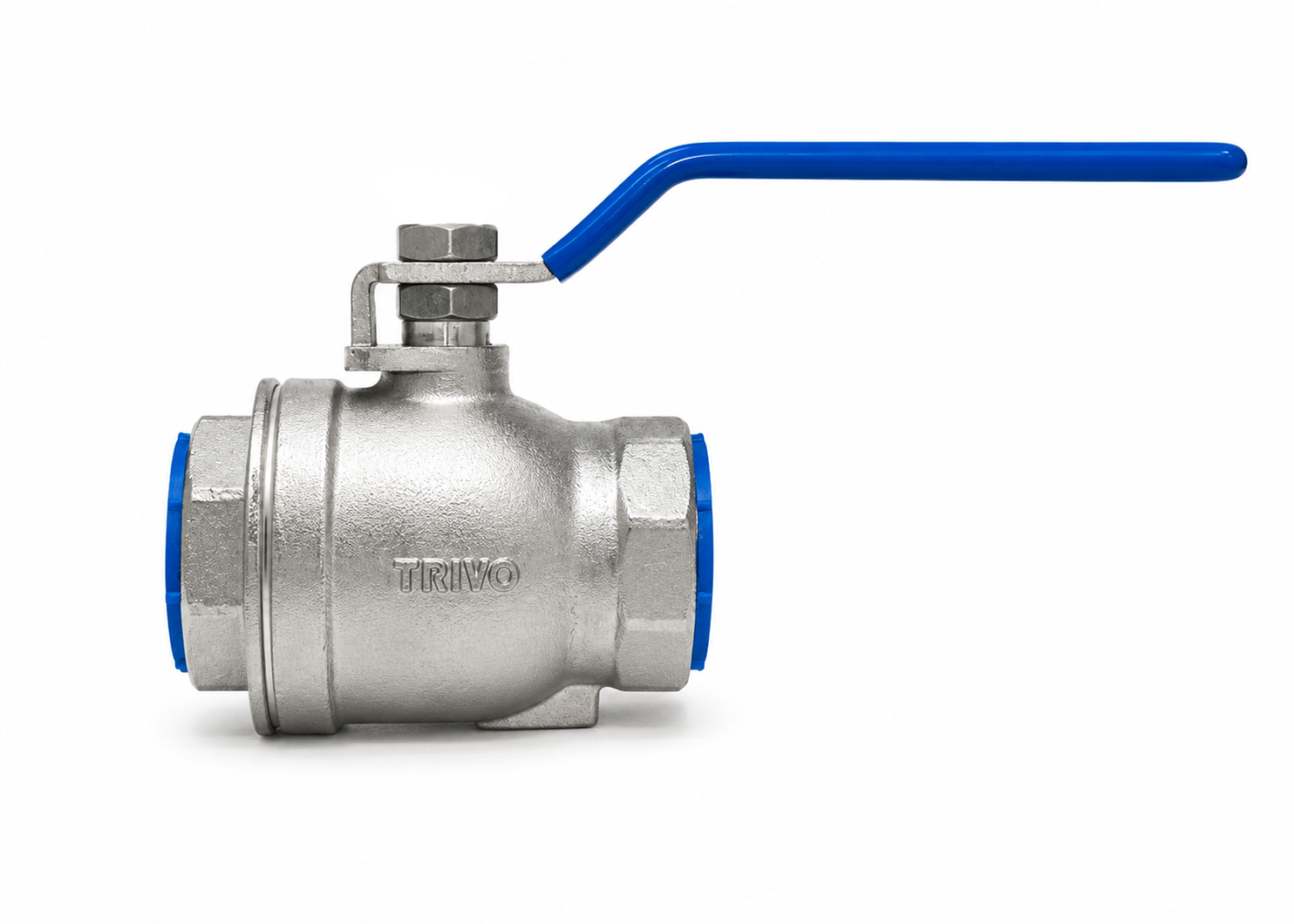

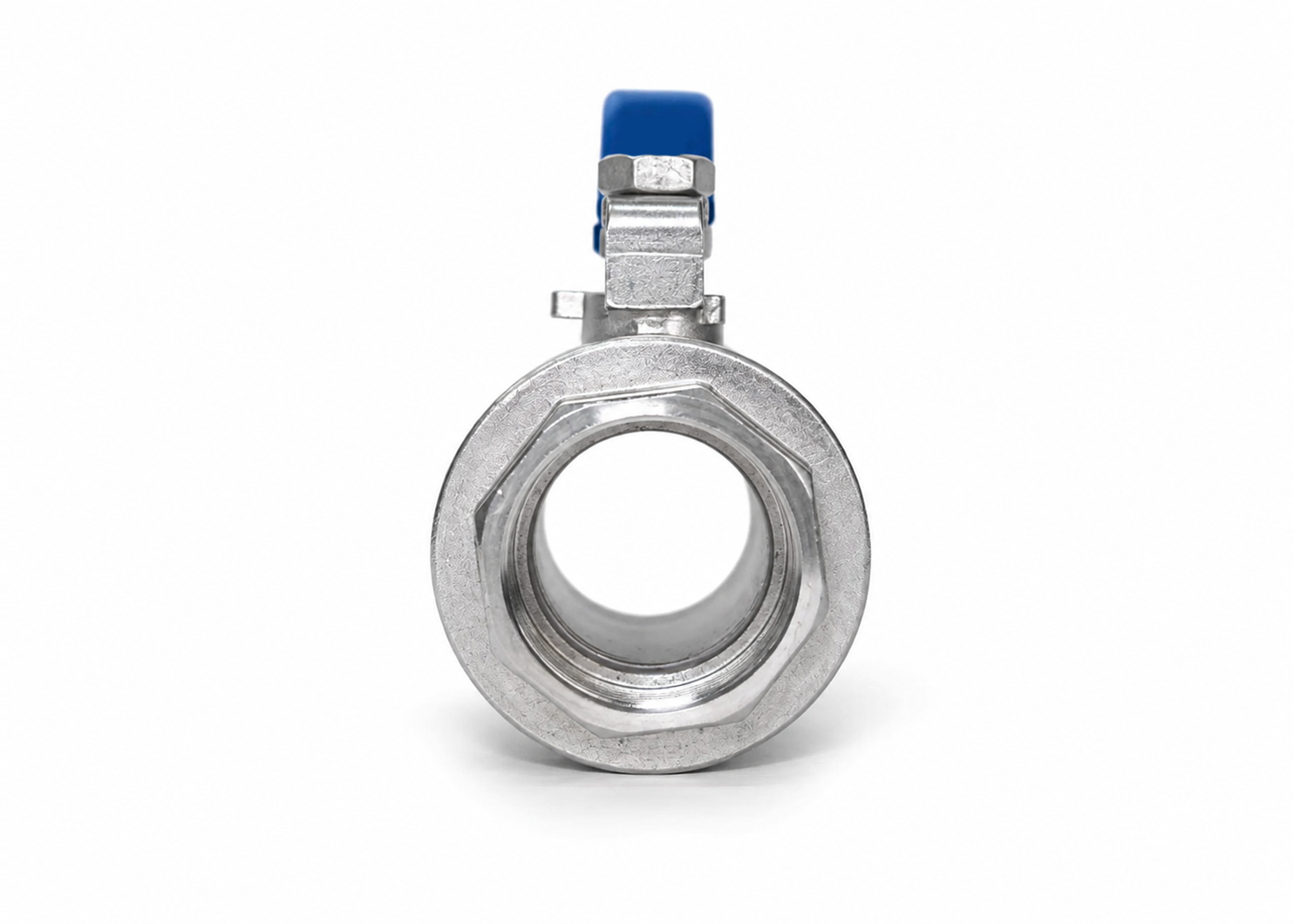

Ball Valve — 50mm
Material
SS 304/CF8
Size
50mm
Type
Ball Valve
1 / 4
Technical Drawing
Features
- Two-piece full-bore body construction
- Investment-casted SS 304 (CF8) body & ball
- Virgin PTFE (Teflon) seats & gland packing
- Blue vinyl-coated lever handle for easy operation
- 180° quarter-turn open/close mechanism
- Pressure Rating: PN25 / Class 150
- Full-bore design for zero pressure drop
- Blowout-proof stem design
- Anti-static device for spark-free operation
Suitability
Water Supply & DistributionOil & Gas PipelinesChemical & Petrochemical PlantsSteam & Compressed Air LinesHVAC & Refrigeration SystemsFire Protection SystemsMarine & Offshore PlatformsDairy, Beverage & Pharmaceutical
Specifications
| Size (Inch) | Size (mm) | L (mm) | H (mm) | W (mm) |
|---|---|---|---|---|
| 1/2" | 15 | 65 | 58 | 100 |
| 3/4" | 20 | 72 | 65 | 120 |
| 1" | 25 | 85 | 73 | 150 |
| 1-1/4" | 32 | 95 | 80 | 170 |
| 1-1/2" | 40 | 110 | 90 | 200 |
| 2" | 50 | 130 | 100 | 230 |
Custom Requirements
Need a custom specification?
We engineer custom fittings, valves, and adapters to your exact specifications. Send us your requirements and receive a technical quote within 48 hours.
