/ Column Adapter

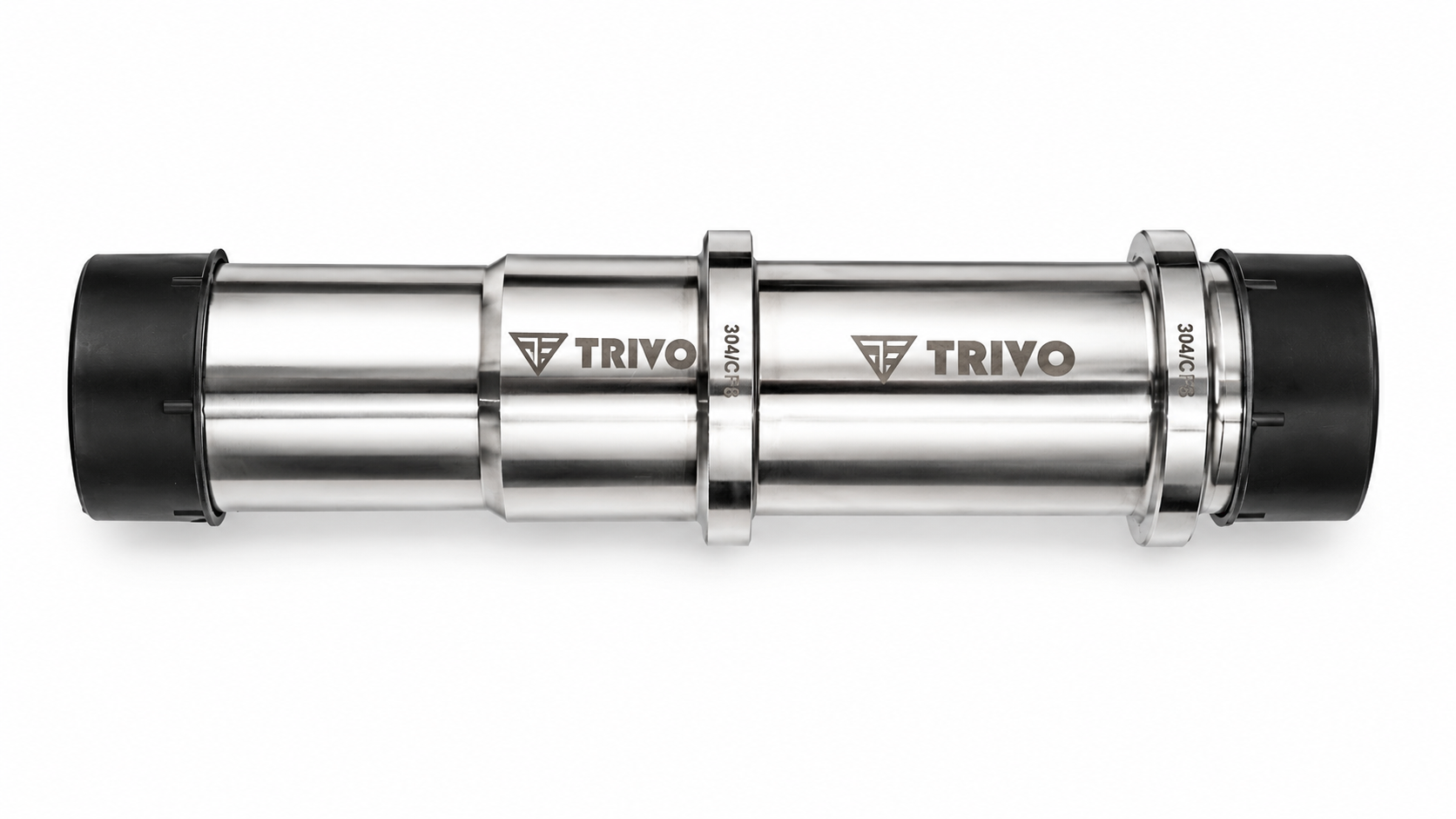

Column Adapter — 40mm
Material
SS 304/CF8
Size
40mm
Type
Column Adapter
1 / 3
Features
- Superior quality investment-casted stainless steel
- Available in SS 304 (CF8) & SS 316 (CF8M) grades
- Precision CNC-machined bore and threads
- BSP / BSPT / NPT threading as per requirement
- Pressure Rating: PN25
- Test Pressure (Hyd.): 30 Kg/cm² (427 psi)
- Working Pressure: 25 Kg/cm² (356 psi)
- Smooth internal bore for uninterrupted fluid flow
- Compatible with all standard submersible pump columns
Suitability
Submersible Pump InstallationsBorewell & Tubewell SystemsWater Supply & DistributionAgricultural IrrigationIndustrial Water TreatmentOverhead Tank Connections
Specifications
| Size (Inch) | Size (mm) | Thread | Length (mm) |
|---|---|---|---|
| 1/2" | 15 | BSP | 80 |
| 3/4" | 20 | BSP | 85 |
| 1" | 25 | BSP | 95 |
| 1-1/4" | 32 | BSP | 100 |
| 1-1/2" | 40 | BSP | 110 |
| 2" | 50 | BSP | 120 |
| 2-1/2" | 65 | BSP | 135 |
Custom Requirements
Need a custom specification?
We engineer custom fittings, valves, and adapters to your exact specifications. Send us your requirements and receive a technical quote within 48 hours.
